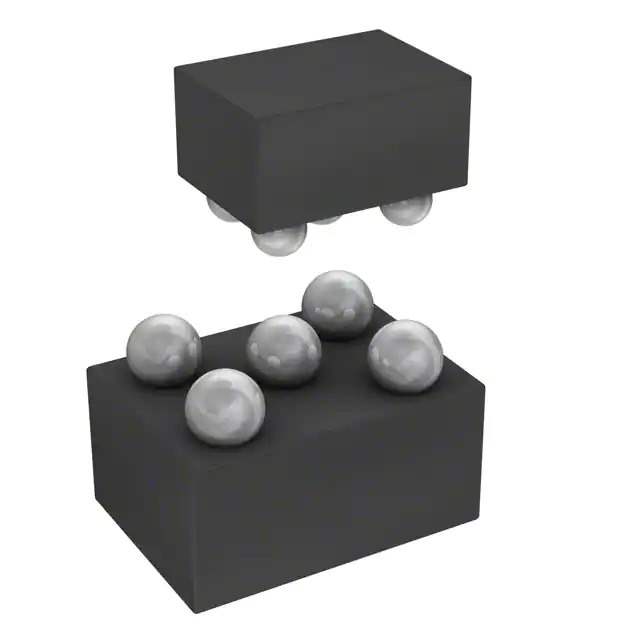

PCMF1USB3SZ Real Image
Same model may have multiple batches, images only for reference.

PCMF1USB3SZ

Part No PCMF1USB3SZ
Manufacturer Nexperia USA Inc.
Catalog Common Mode Chokes
Description CMC 2LN SMD ESD
Datasheet
PCMF1USB3SZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Nexperia USA Inc.
Series PCM
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
DC Resistance (DCR) (Max) 3Ohm (Typ)
Temperature Range - Operating -40°C ~ 125°C
Features ESD
Mounting Type Surface Mount
Size / Dimension 0.046" L x 0.030" W (1.17mm x 0.77mm)
Height (Max) 0.024" (0.60mm)
Package / Case 5-UFBGA, WLCSP
Base Product Number PCMF1USB3
Standard Package 4,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 740685-PCMF1USB3SZ
Ultra Librarian 3D Model Ultra Librarian PCMF1USB3SZ CAD Model

Description

The 740685-PCMF1USB3SZ is a common mode choke filter from Nexperia USA Inc.

  • Design: Designed to suppress electromagnetic interference (EMI) in signal lines.
  • Series: PCM series.
  • Features: ESD protection.
  • Package: Tape and reel.
  • Standard Package: 4,500 pieces.
  • Size: 0.046" L x 0.030" W (1.17mm x 0.77mm).
  • Lines: Two lines.
  • Maximum DC Resistance: 3 Ohms.
  • Mounting: Surface mountable.
  • Operating Temperature: -40°C to 125°C.
  • Status: Active product.
