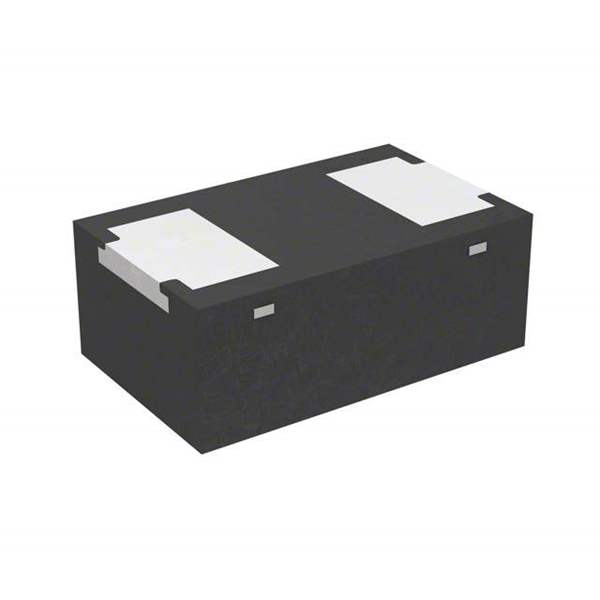

The PESD12VS1ULD,315 is an ElectroStatic Discharge (ESD) protection diode manufactured by Nexperia. This device is designed to protect sensitive electronic components from ESD strikes, which can cause damage or malfunction. It offers a fast response time and low clamping voltage to ensure effective protection.

Applications:

• ESD Protection for USB Ports
• ESD Protection for HDMI Ports
• ESD Protection for Antenna Inputs
• ESD Protection for Keypads
• ESD Protection for Data Lines

Features:

• Ultra-Low Clamping Voltage
• Fast Response Time
• Low Capacitance
• Small Footprint
• Unidirectional ESD Protection

Benefits:

• Enhanced ESD Protection
• Improved System Reliability
• Reduced Downtime
• Minimized Signal Degradation
• Compact Design

Additional Details:

The PESD12VS1ULD,315 features an ultra-low clamping voltage, ensuring that the voltage across the protected component remains within safe limits during an ESD event. Its fast response time enables it to quickly react to ESD strikes, preventing damage. The low capacitance minimizes signal degradation, making it suitable for high-speed data lines. It is available in a small DFN1006D-2 package, which saves valuable board space. This is a unidirectional ESD protection diode.

This ESD protection diode is commonly used to protect USB ports, HDMI ports, antenna inputs, keypads, and data lines from ESD strikes. It is particularly well-suited for portable devices, where space is limited and ESD protection is critical.

Proper placement of the ESD protection diode is crucial for effective protection. It should be placed as close as possible to the connector or component that needs to be protected. The ground connection should be as short and direct as possible to minimize inductance.

In summary, the PESD12VS1ULD,315 from Nexperia is a highly effective ESD protection diode that provides essential protection for sensitive electronic components. Its ultra-low clamping voltage, fast response time, and low capacitance make it an excellent choice for enhancing system reliability and preventing damage from ESD events.
