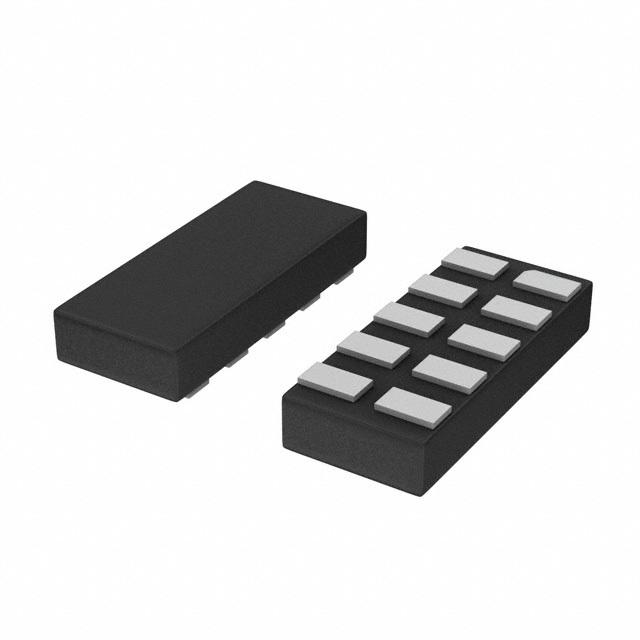

Same model may have multiple batches, images only for reference.
PESD1LVDS,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD1LVDS,115

Part No PESD1LVDS,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 10XSON
Datasheet
PESD1LVDS,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V (Max)
Minimum Breakdown Voltage 6V
Power Line Protection Yes
Applications Automotive
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package DFN2510-10
Win Source Part Number 1087536-PESD1LVDS,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD1LVDS,115 CAD Model

Description

The PESD1LVDS,115 is a circuit protection device manufactured by Nexperia USA Inc.

  • Type: Steering (Rail to Rail)
  • Number of Channels: 4 Unidirectional
  • Application: Automotive
  • Stand-off Voltage (Vwm): 5.5V (max)
  • Minimum Breakdown Voltage: 6V
  • Case: DFN2510-10
  • Mounting: SMD (SMT)
  • Supply and Demand Status: Sufficient
