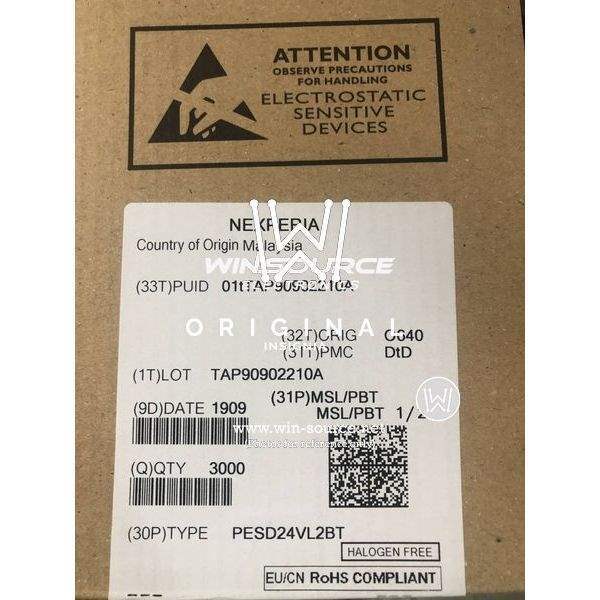

PESD24VL2BT,215 Nexperia USA Inc. PESD24VL2BT,215 real image PESD24VL2BT,215 label picture
Same model may have multiple batches, images only for reference.
PESD24VL2BT,215 Nexperia USA Inc. PESD24VL2BT,215 real image PESD24VL2BT,215 label picture
PESD24VL2BT,215 Nexperia USA Inc. PESD24VL2BT,215 real image PESD24VL2BT,215 label picture
Same model may have multiple batches, images only for reference.

PESD24VL2BT,215

Part No PESD24VL2BT,215
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 24VWM 70VC SOT23
Datasheet
PESD24VL2BT,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 24V (Max)
Minimum Breakdown Voltage 25.4V
Max Clamping Voltage 70V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 11pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23 (TO-236AB)
Win Source Part Number 1087538-PESD24VL2BT,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD24VL2BT,215 CAD Model

Description

The Nexperia PESD24VL2BT,215 is a bidirectional zener diode designed for general-purpose use.

  • Manufacturer: Nexperia
  • Product Name: PESD24VL2BT,215
  • Stand-off Voltage: 24V
  • Minimum Breakdown Voltage: 25.4V
  • Capacitance: 11pF @ 1MHz
  • Package: SOT-23 (TO-236AB)
  • Maximum Clamping Voltage: 70V
  • Peak Pulse Current: 3A (8/20μs)
  • Power Dissipation: 200W
