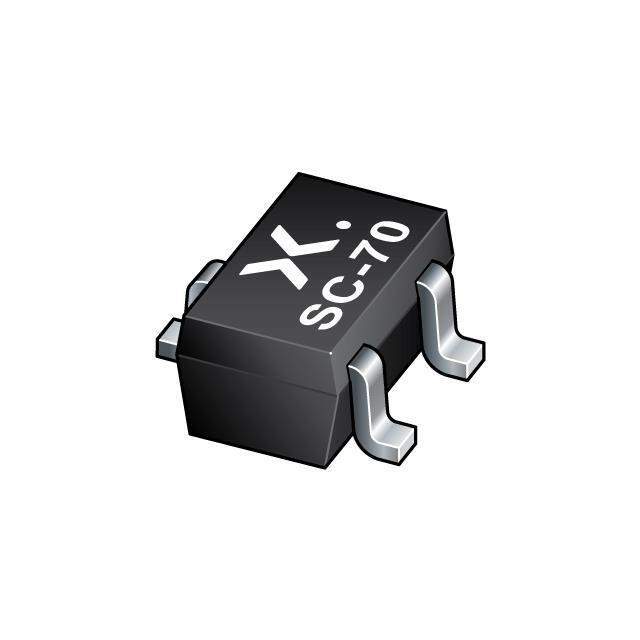

PESD2IVN24-UX

Name: PESD2IVN24-UX
Brand: Nexperia USA Inc.
SKU: 963454
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD2IVN24-UX
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 42VC SOT323 / 42V Clamp 3.5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323
Datasheet	PESD2IVN24-UX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	25.5V
Voltage - Clamping (Max) @ Ipp	42V
Current - Peak Pulse (10/1000µs)	3.5A (8/20µs)
Power Line Protection	No
Applications	Automotive, CAN
Capacitance @ Frequency	14pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting	SMD (SMT)
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Product Number	PESD2IVN24
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	1727-7665-2,1727-7665-1,PESD2IVN24-UX-ND,1727-7665-6,934070277115
Standard Package	3,000
Win Source Part Number	963454-PESD2IVN24-UX
Ultra Librarian 3D Model	Ultra Librarian PESD2IVN24-UX CAD Model

Alternative Products

Description

The PESD2IVN24-UX is a Zener diode designed for circuit protection in the TVS - Diodes category. It is part of the automotive AEC-Q101 series and has a tape and reel package.

Reverse Standoff Voltage: 24V (max)
Breakdown Voltage: 25.5V (min)
Voltage Clamping (Max) @ Ipp: 42V
Capacitance @ Frequency: 14pF @ 1MHz
Current - Peak Pulse (10/1000µs): 3.5A (8/20μs)
Mounting: SMD (SMT)
Standard Package: 3,000
Manufacturer: Nexperia USA Inc.
