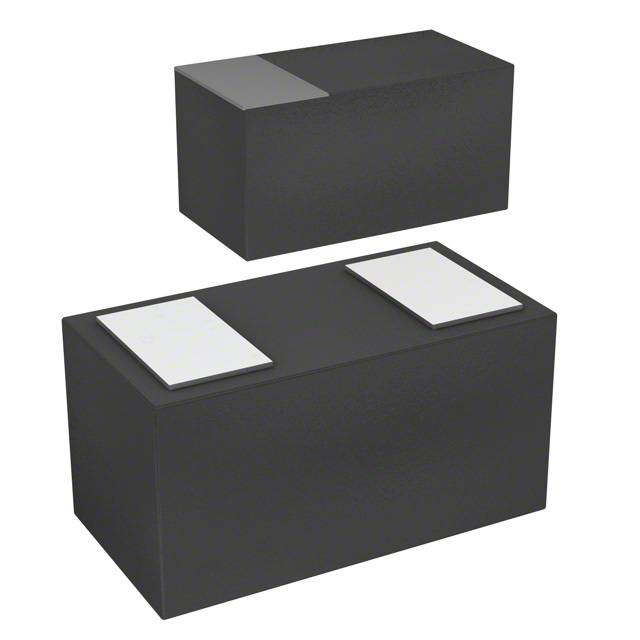

PESD5V0F1USF,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PESD5V0F1USF,315

Part No PESD5V0F1USF,315
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 10VC SOD962
Datasheet
PESD5V0F1USF,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 10V
Peak Pulse Current(Ippm) 3A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -55°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package DSN0603-2
Win Source Part Number 1087576-PESD5V0F1USF,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PESD5V0F1USF,315 CAD Model

Description

The PESD5V0F1USF,315 is a SMD (SMT) mounted unidirectional zener diode manufactured by Nexperia USA Inc.

  • Capacitance: 0.6pF @ 1MHz
  • Application: General Purpose
  • Stand-off Voltage: 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 10V
  • Peak Pulse Current: 3A (8/20μs)
  • Supply and Demand: Balance
  • Temperature Range: -55°C to 150°C (TA)
  • Package: DSN0603-2
