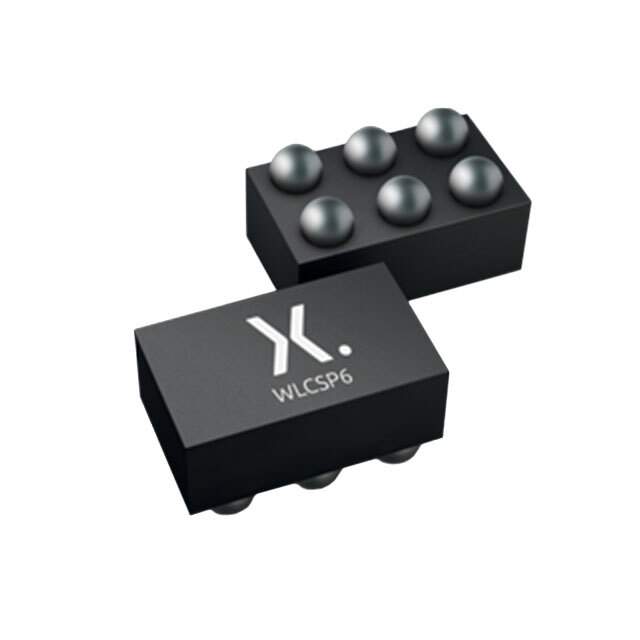

PMCM6501VNEZ Real Image
Same model may have multiple batches, images only for reference.

PMCM6501VNEZ

Part No PMCM6501VNEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 12V 6WLCSP
Datasheet
PMCM6501VNEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 12V
Continuous Drain Current at 25°C 7.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 900mV @ 250μA
Max Gate Charge 24nC @ 4.5V
Max Input Capacitance 920pF @ 6V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 556mW (Ta), 12.5W (Tc)
Maximum Rds On at Id,Vgs 18 mOhm @ 3A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-WLCSP (1.48x.98)
Dimension 6-XFBGA, WLCSP
Win Source Part Number 1029581-PMCM6501VNEZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMCM6501VNEZ CAD Model

Description

The PMCM6501VNEZ from Nexperia USA Inc. is an N-channel MOSFET with a power dissipation of 556mW (Ta) and 12.5W (Tc).

  • Channel Type: N-Channel
  • Power Dissipation: 556mW (Ta) and 12.5W (Tc)
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Gate Charge: 24nC @ 4.5V
  • Maximum Rds On @ Id,Vgs: 18 mOhm @ 3A, 4.5V
  • Drive Voltage: 1.5V, 4.5V
  • Mounting: SMD (SMT)
  • Dimension: 6-XFBGA, WLCSP
  • Popularity: High
  • Supply and Demand Status: Balanced
