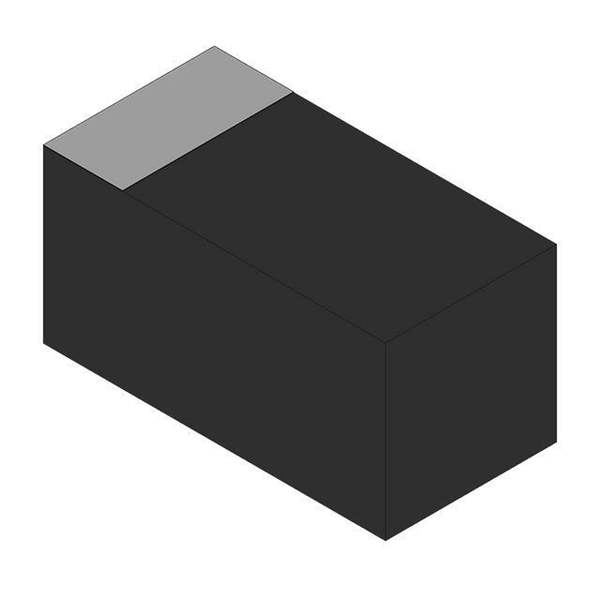

PMEG3002ESFCYL Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMEG3002ESFCYL

Part No PMEG3002ESFCYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Diode 30 V 200mA Surface Mount DSN0603-2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nexperia USA Inc.
Packaging Bulk
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 535 mV @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 1.42 ns
Current - Reverse Leakage @ Vr 9 µA @ 30 V
Capacitance @ Vr, F 21pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Operating Temperature - Junction 150°C
Base Product Number PMEG3002
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1477799-PMEG3002ESFCYL
Ultra Librarian 3D Model Ultra Librarian PMEG3002ESFCYL CAD Model
