The PMEG4010CPA is a Schottky Barrier Rectifier from Nexperia. It's designed for high-efficiency rectification in a range of applications. It offers a low forward voltage drop and fast switching speed, making it suitable for circuits where minimizing power loss and maximizing efficiency are critical requirements.

Applications:

• DC-DC converters
• High-frequency switched-mode power supplies (SMPS)
• Reverse polarity protection
• Blocking diodes
• LED lighting applications

Features:

• Low forward voltage drop (Vf)
• Fast switching speed
• Small and robust Surface-Mounted Device (SMD) package
• High-efficiency rectification
• Lead-free and RoHS compliant

Benefits:

• Improved Energy Efficiency: The low forward voltage drop reduces power losses, increasing the overall efficiency of the circuit.
• Faster Switching: The fast switching speed enables higher frequency operation, reducing the size and cost of passive components.
• Compact Design: The small SMD package enables compact and space-saving designs.
• Environmentally Friendly: Lead-free and RoHS compliant, meeting environmental regulations.

Additional Details:

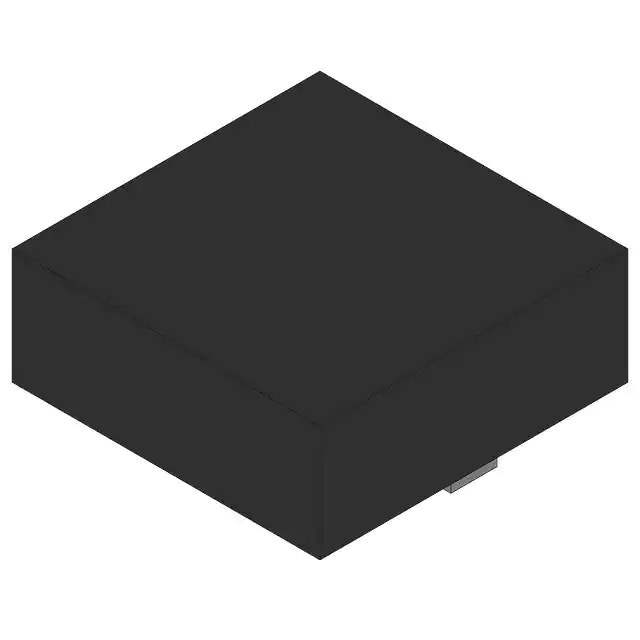

The PMEG4010CPA has a maximum repetitive peak reverse voltage (VRRM) of 40 V and a maximum average forward rectified current (IF(AV)) of 1 A. It is typically housed in a CFP3 (SOT883) leadless package. The low forward voltage drop is a key factor in minimizing power dissipation, particularly in high-current applications. The fast reverse recovery time also contributes to efficient operation at higher switching frequencies.

This rectifier is often utilized in applications where efficient power conversion is essential, such as portable devices, battery chargers, and LED drivers. Its combination of small size and high performance makes it a preferred choice for designers aiming to optimize both efficiency and board space in their designs. The leadless package further aids in minimizing board space.
