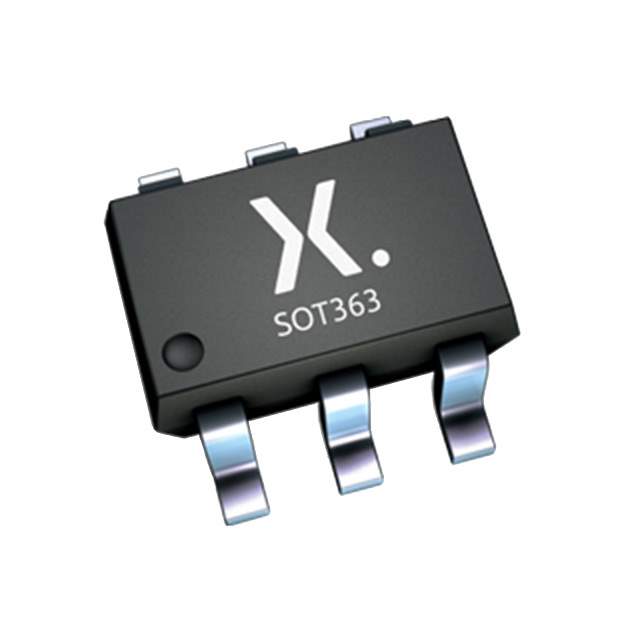

PMGD290UCEAX Real Image
Same model may have multiple batches, images only for reference.

PMGD290UCEAX

Part No PMGD290UCEAX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N/P-CH 20V 6TSSOP
Datasheet
PMGD290UCEAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
FET Type N and P-Channel
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 725mA, 500mA
Maximum Rds On at Id,Vgs 380 mOhm @ 500mA, 4.5V
Gate-Source Threshold Voltage 1.3V @ 250μA
Max Gate Charge 0.68nC @ 4.5V
Max Input Capacitance 83pF @ 10V
Maximum Power Dissipation 280mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-TSSOP
Win Source Part Number 1089677-PMGD290UCEAX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMGD290UCEAX CAD Model

Description

The Nexperia USA Inc. PMGD290UCEAX is a N and P-Channel FET with logic level gate feature.

  • Channels: N and P-Channel
  • Gate Feature: Logic Level Gate
  • Maximum Power Dissipation: 280mW
  • Drain-Source Breakdown Voltage: 20V
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Commonly Used In: Electronic Circuitry for Switching Applications
