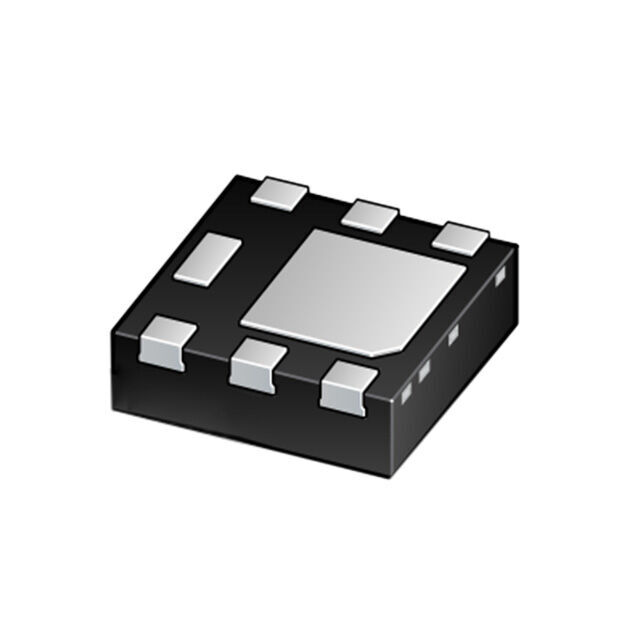

Same model may have multiple batches, images only for reference.
PMPB100XPEAX Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PMPB100XPEAX

Part No PMPB100XPEAX
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description P-Channel 20 V 3.2A (Ta) 550mW (Ta) Surface Mount DFN2020MD-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Nexperia USA Inc.
Packaging Reel - TR
FET Type P-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 3V, 4.5V
Rds On (Max) @ Id, Vgs 122mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id 1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 5 nC @ 4.5 V
Vgs (Max) +8V, -10V
Input Capacitance (Ciss) (Max) @ Vds 388 pF @ 10 V
Power Dissipation (Max) 550mW (Ta)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Supplier Device Package DFN2020MD-6
Package / Case 6-UDFN Exposed Pad
Base Product Number PMPB100
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Win Source Part Number 1477516-PMPB100XPEAX
Ultra Librarian 3D Model Ultra Librarian PMPB100XPEAX CAD Model
