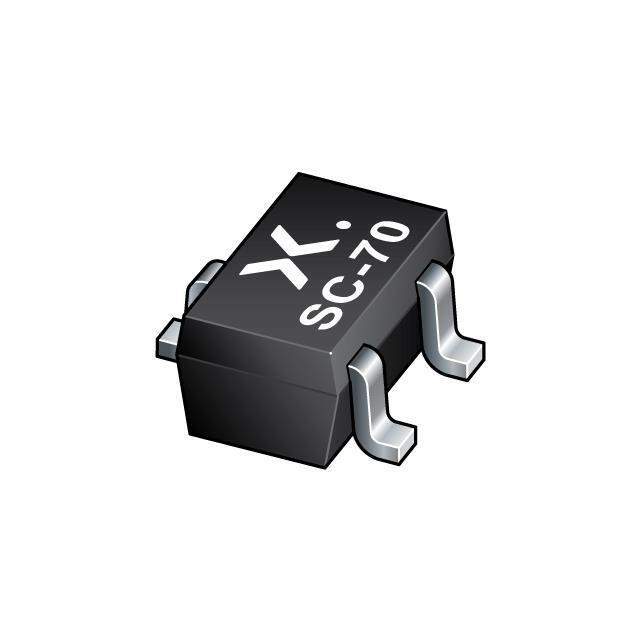

The PMSTA55,115 is a PNP bipolar transistor in an SC-70 package. It has a maximum power dissipation of 200 mW and a collector-emitter breakdown voltage of 60V.

• Power Dissipation (Max): 200 mW
• Collector-Emitter Breakdown Voltage: 60V
• Collector Current (Max): 500 mA
• Vce Saturation: 250mV @ Ib=10mA, Ic=100mA
• DC Current Gain (hFE): 100 @ Ic=100mA, Vce=1V
• Series: Automotive
• Standard: AEC-Q101
• Suitable for: Applications that require low power consumption and high-speed switching, such as automotive electronics, power management, and signal amplification.
