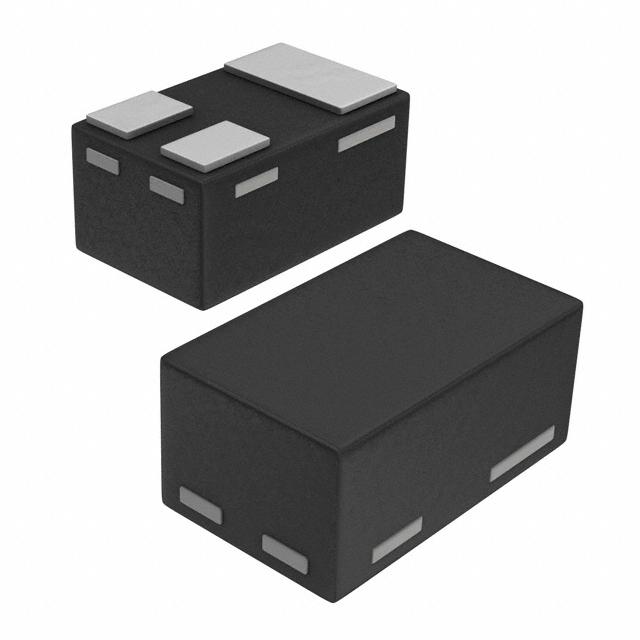

PMZ1000UN,315 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PMZ1000UN,315

Part No PMZ1000UN,315
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH SOT883
Datasheet
PMZ1000UN,315 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 480mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 950mV @ 250μA
Max Gate Charge 0.89nC @ 4.5V
Max Input Capacitance 43pF @ 25V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 350mW (Ta)
Maximum Rds On at Id,Vgs 1 Ohm @ 200mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package DFN1006-3
Dimension SC-101, SOT-883
Win Source Part Number 1089815-PMZ1000UN,315
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PMZ1000UN,315 CAD Model

Description

The Nexperia USA Inc. PMZ1000UN,315 is an N-channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 480mA @ 25°C.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 480mA
  • Gate-Source Threshold Voltage: 950mV @ 250μA
  • Maximum Gate Charge: 0.89nC @ 4.5V
  • Maximum Input Capacitance: 43pF @ 25V
  • Maximum Rds On @ Id, Vgs: 1 Ohm @ 200mA, 4.5V
  • Package: DFN1006-3
  • Suitable for Use in: discrete semiconductor products.
