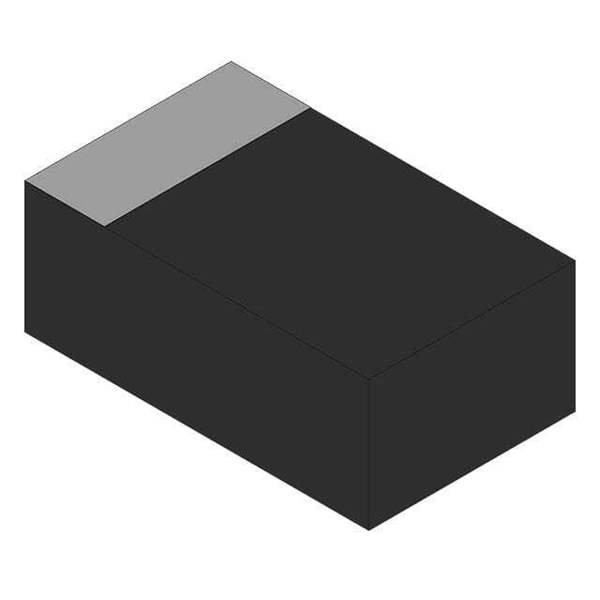

PMZ320UPEYL

Name: PMZ320UPEYL
Brand: Nexperia USA Inc.
SKU: 852616
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMZ320UPEYL
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 30V 1A DFN1006-3
Datasheet	PMZ320UPEYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	510mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.4 nC @ 4.5 V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	122 pF @ 15 V
Power Dissipation (Max)	350mW (Ta), 6.25W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-883
Package / Case	SC-101, SOT-883
Base Product Number	PMZ320
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	852616-PMZ320UPEYL
Ultra Librarian 3D Model	Ultra Librarian PMZ320UPEYL CAD Model

Alternative Products

Description

The PMZ320UPEYL is a P-Channel MOSFET from Nexperia USA Inc.

Mounting Type: Surface Mountable
Package: SC-101, SOT-883
Drain to Source Voltage: 30 V
Continuous Drain Current: 1A
Maximum On-Resistance: 510mOhm @ 1A, 4.5V Vgs
Gate-Source Threshold Voltage: 950mV @ 250µA
Power Dissipation: 350mW (6.25W with thermal management)
Gate Charge: 1.4 nC @ 4.5V Vgs
Input Capacitance: 122 pF @ 15V Vds
Operating Temperature: -55°C to 150°C
Status: Active
Reliability: Reliable MOSFET for various electronic applications
