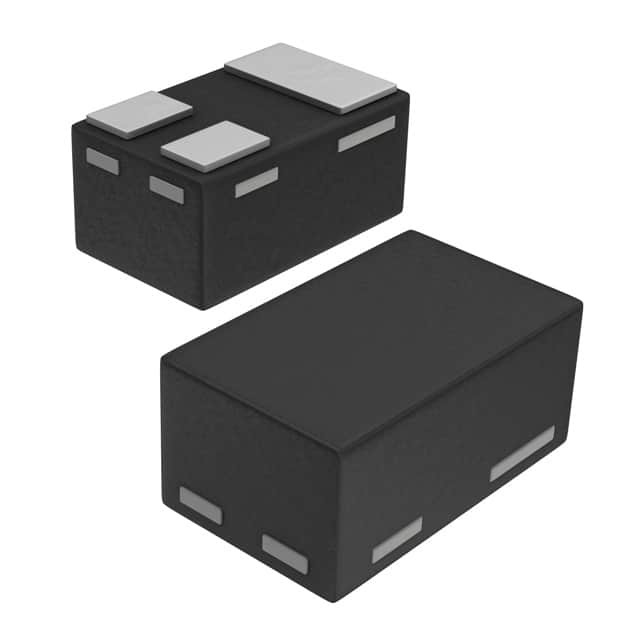

PMZ390UN,315

Name: PMZ390UN,315
Brand: Nexperia USA Inc.
SKU: 1213904
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMZ390UN,315
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 1.78A DFN1006-3 / N-Channel 30 V 1.78A (Tc) 2.5W (Tc) Surface Mount SOT-883
Datasheet	PMZ390UN,315 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr	Nexperia USA Inc.
Series	TrenchMOS™
Package	Tape & Reel
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	1.78A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	460mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	0.89 nC @ 4.5 V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	43 pF @ 25 V
Power Dissipation (Max)	2.5W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Supplier Device Package	SOT-883
Package / Case	SC-101, SOT-883
Base Product Number	PMZ390
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	1727-5861-2,PMZ390UN315,1727-5861-1,1727-5861-6,568-7442-6-ND,PMZ390UN T/R,568-7442-2-ND,568-7442-1-ND,2156-PMZ390UN,315-NEX,NEXNEXPMZ390UN,315,PMZ390UN,315-ND,568-7442-6,568-7442-1,568-7442-2,934060156315,PMZ390UN T/R-ND
Standard Package	10,000
Win Source Part Number	1213904-PMZ390UN,315
Ultra Librarian 3D Model	Ultra Librarian PMZ390UN,315 CAD Model

Alternative Products

Description

The PMZ390UN,315 is an N-Channel MOSFET transistor from Nexperia USA Inc.

Category: Transistors - FETs, MOSFETs - Single
Drain to Source Voltage (Vdss): 30V
Continuous Drain Current (Id) @ 25°C: 1.78A (Tc)
Maximum Rds On @ 200mA, 4.5V: 460mOhm
Mounting Type: SMD (SMT)
Package: SC-101, SOT-883
Gate Charge (Qg) (Max) @ Vgs: 0.89 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 43 pF @ 25 V
Temperature Range: -55°C to 150°C (TJ)
