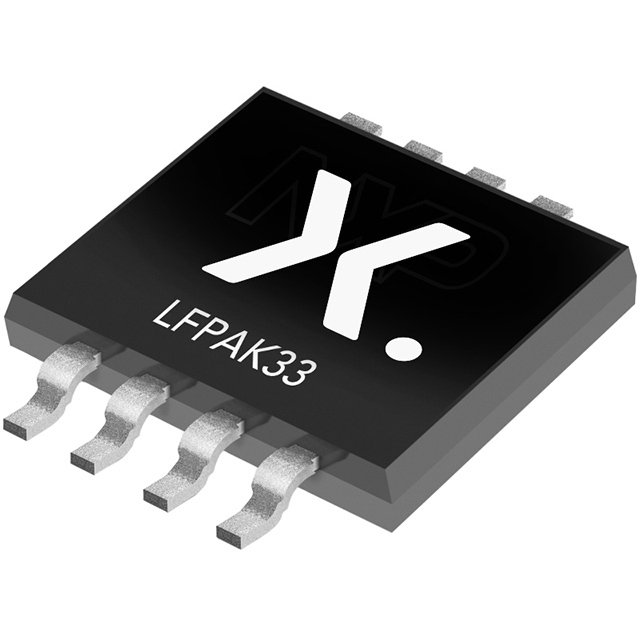

PSMN013-30MLC,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PSMN013-30MLC,115

Part No PSMN013-30MLC,115
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 39A LFPAK33  /  N-Channel 30 V 39A (Tc) 38W (Tc) Surface Mount LFPAK33
Datasheet
PSMN013-30MLC,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V
Current - Continuous Drain (Id) @ 25°C 39A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 13.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id 1.95V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 8 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 519 pF @ 15 V
Power Dissipation (Max) 38W (Tc)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting SMD (SMT)
Supplier Device Package LFPAK33
Package / Case SOT-1210, 8-LFPAK33 (5-Lead)
Base Product Number PSMN013
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names PSMN01330MLC115,1727-7138-6,568-9571-6,934066943115,568-9571-6-ND,568-9571-1,568-9571-2,568-9571-1-ND,568-9571-2-ND,1727-7138-1,1727-7138-2
Standard Package 1,500
Win Source Part Number 1019082-PSMN013-30MLC,115
Ultra Librarian 3D Model Ultra Librarian PSMN013-30MLC,115 CAD Model

Description

The 1019082-PSMN013-30MLC,115 is a N-channel MOSFET transistor with a drain to source voltage of 30 V and a continuous drain current of 39A (Tc).

  • Rds On (Max) @ Id, Vgs: 13.6mOhm @ 10A, 10V
  • Vgs(th) (Max) @ Id: 1.95V @ 1mA
  • Power Dissipation: 38W (Tc)
  • Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 519 pF @ 15 V
  • Vgs (Max): ±20V
  • Package: SOT-1210, 8-LFPAK33 (5-Lead)
  • Mounting: SMD (SMT)
