The Nexperia PSMN1R7-30YL,115 is an N-Channel MOSFET with a drain-source breakdown voltage of 30V and a continuous drain current of 100A @ 25°C.

• Manufacturer: Nexperia
• Channel Type: N-Channel
• Drain-Source Breakdown Voltage: 30V
• Continuous Drain Current: 100A @ 25°C
• Maximum Rds On: 1.7 mOhm @ 15A, 10V
• Maximum Gate Charge: 77.9nC @ 10V

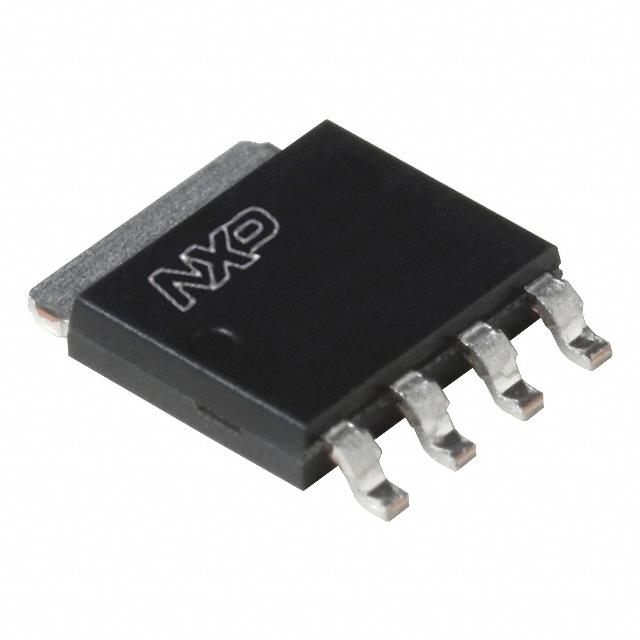

• Package: LFPAK56, Power-SO8
• Power Dissipation: 109W (Tc)
• Application: Discrete semiconductor products such as power supplies and motor control circuits
• Operating Temperature Range: -55°C to 175°C (TJ)
• Status: Active
