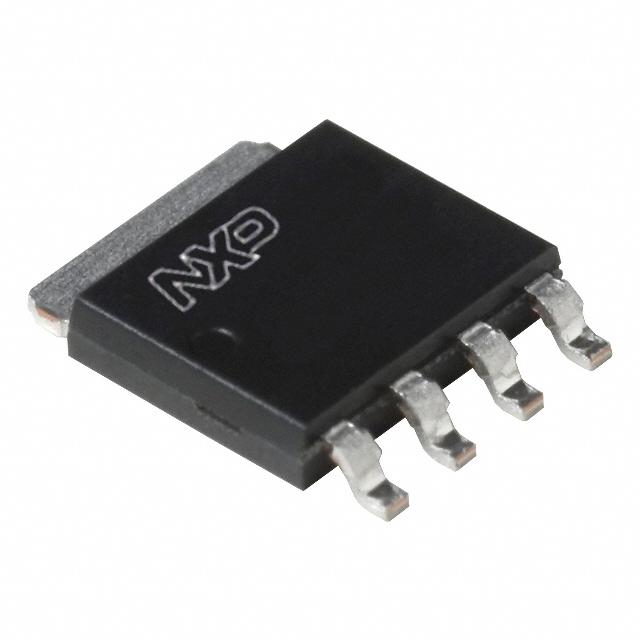

The Nexperia USA Inc. PSMN2R5-30YL,115 is an N-Channel MOSFET with a Drain-Source Breakdown Voltage of 30V and Continuous Drain Current @ 25°C of 100A (Tc).

• Gate-Source Threshold Voltage: 2.15V @ 1mA
• Maximum Gate Charge: 57nC @ 10V
• Maximum Rds On @ Id,Vgs: 2.4 mOhm @ 15A, 10V
• Package: LFPAK56, Power-SO8 (SC-100, SOT-669)
• Mounting: SMD (SMT)
• Power Dissipation (Max): 88W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Temperature Range: -55°C to 175°C (TJ)
• Popularity: Medium
• Supply and Demand: Limited
