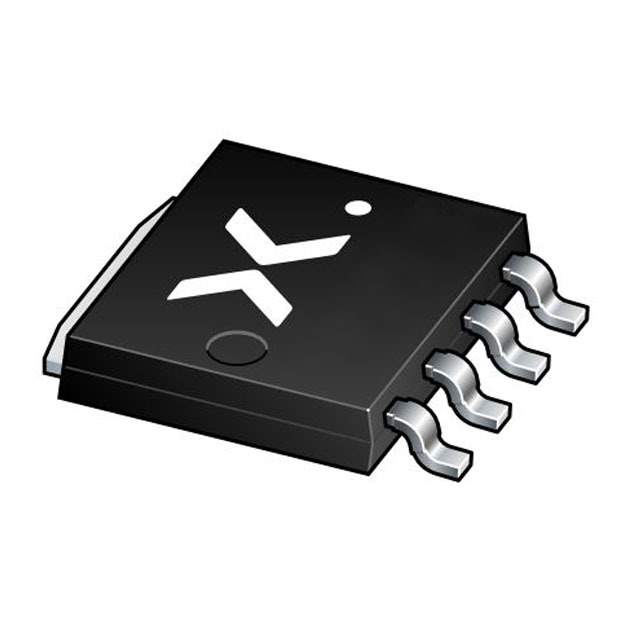

The PSMN3R5-80YSFX is a single N-channel MOSFET from Nexperia USA Inc. It has a drain-to-source voltage (Vdss) of 80V and a continuous drain current (Id) of 150A @ 25°C.

• Vdss (Drain-to-Source Voltage): 80V
• Id (Continuous Drain Current): 150A @ 25°C
• Rds On (Max): 3.5mOhm @ 25A, 10V Vgs
• Vgs(th) (Gate Threshold Voltage): 4V @ 1mA
• Mounting Type: Surface Mountable
• Package: SOT-1023, 4-LFPAK
• Qg (Gate Charge): 108nC @ 10V
• Ciss (Input Capacitance): 7227pF @ 40V Vds
• Vgs (Max Gate-to-Source Voltage): ±20V
• Operating Temperature: -55°C to 175°C
• REACH Compliance: Yes
• Moisture Sensitivity Level: 1 (unlimited)
• Suitable for: Various applications that require high power and high voltage switching.
