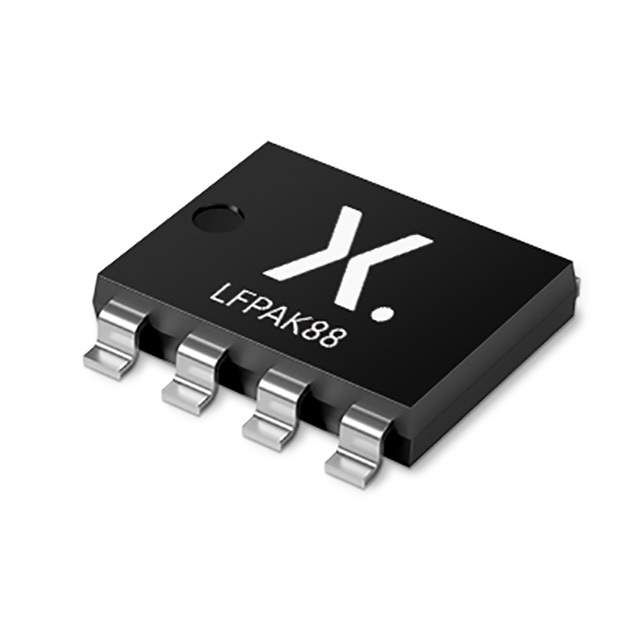

PSMNR70-40SSHJ Real Image
Same model may have multiple batches, images only for reference.

PSMNR70-40SSHJ

Part No PSMNR70-40SSHJ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 425A LFPAK88 / N-Channel 40 V 425A (Ta) 375W (Ta) Surface Mount LFPAK88 (SOT1235)
Datasheet
PSMNR70-40SSHJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>Single FETs, MOSFETs
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 40 V
Current - Continuous Drain (Id) @ 25°C 425A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 0.7mOhm @ 25A, 10V
Vgs(th) (Max) @ Id 3.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs 202 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 15719 pF @ 25 V
FET Feature Schottky Diode (Body)
Power Dissipation (Max) 375W (Ta)
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package LFPAK88 (SOT1235)
Package / Case SOT-1235
Base Product Number PSMNR70
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Standard Package 2,000 pcs
Win Source Part Number 1383217-PSMNR70-40SSHJ
Ultra Librarian 3D Model Ultra Librarian PSMNR70-40SSHJ CAD Model

Description

The PSMNR70-40SSHJ is an N-Channel MOSFET with a drain to source voltage (Vdss) of 40V and a continuous drain current (Id) of 425A. It features a low on-resistance (Rds On) of 0.7mOhm @ 25A, 10V gate-source voltage (Vgs).

  • Vdss (Drain to Source Voltage): 40V
  • Id (Continuous Drain Current): 425A
  • Rds On (On-Resistance): 0.7mOhm @ 25A, 10V Vgs
  • Diode Feature: Schottky (body)
  • Power Dissipation: 375W
  • Package: LFPAK88 (SOT1235)
  • Series: PSMNR70
  • Manufacturer: Nexperia USA Inc.
  • Operating Temperature: -55°C to 175°C (TJ)
  • REACH Compliance: Not Affected
  • Suitable for: A wide range of power applications.
