Mfr. Part No. Qty. Price

No items in the cart

View Cart
Same model may have multiple batches, images only for reference.

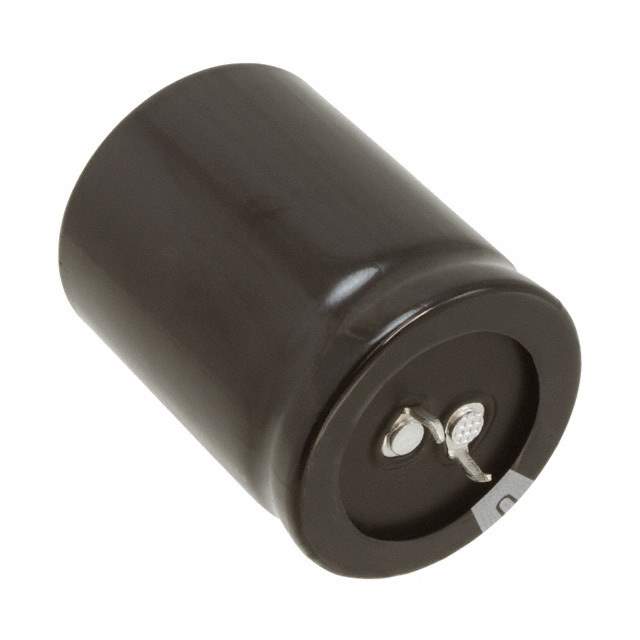

LGG2W561MELC45 Real Image
Same model may have multiple batches, images only for reference.

LGG2W561MELC45

Part No LGG2W561MELC45
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 560UF 20% 450V SNAP / 560 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet
LGG2W561MELC45 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGG
Package Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.7 A @ 120 Hz
Ripple Current @ High Frequency 2.431 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1349584-LGG2W561MELC45
Ultra Librarian 3D Model Ultra Librarian LGG2W561MELC45 CAD Model

Description

The Nichicon 1349584-LGG2W561MELC45 is a radial, can-snap-in aluminum electrolytic capacitor that has a capacitance of 560 µF and a voltage rating of 450V.

  • Capacitance: 560 µF
  • Voltage Rating: 450V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Operating Temperature: -25°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Application: General Purpose
  • Popularity: Low
