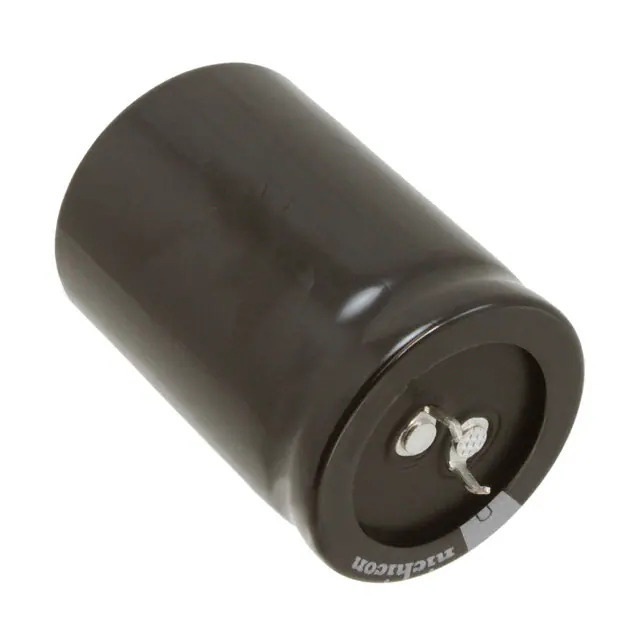

Same model may have multiple batches, images only for reference.
LGG2Z332MELC50 Nichicon
Same model may have multiple batches, images only for reference.

LGG2Z332MELC50

Part No LGG2Z332MELC50
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 3300UF 20% 180V SNAP / 3300 µF 180 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Datasheet
LGG2Z332MELC50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGG
Package Bulk
Product Status Active
Capacitance 3300 µF
Tolerance ±20%
Voltage - Rated 180 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 3.1 A @ 120 Hz
Ripple Current @ High Frequency 4.65 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 2.047" (52.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360764-LGG2Z332MELC50
Ultra Librarian 3D Model Ultra Librarian LGG2Z332MELC50 CAD Model

Description

The LGG series aluminum electrolytic capacitor is a high-capacity capacitor designed for general-purpose applications and manufactured by Nichicon.

  • Capacitance: 3300 µF
  • Voltage - Rated: 180 V
  • Tolerance: ±20%
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Ripple Current - Low Frequency: 3.1 A @ 120 Hz
  • Ripple Current - High Frequency: 4.65 A @ 50 kHz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can - Snap-In
  • Size / Dimension: 1.378" Dia (35.00mm)
  • Height - Seated (Max): 2.047" (52.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Polar
