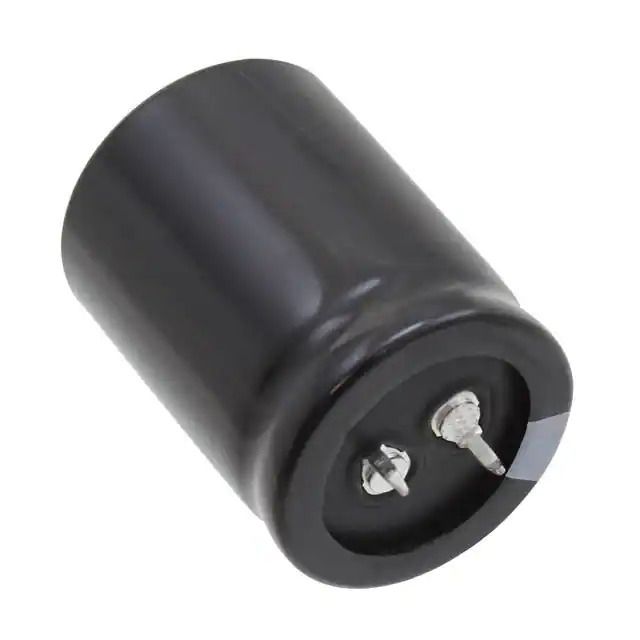

LGW2D122MELB40 Nichicon
Same model may have multiple batches, images only for reference.

LGW2D122MELB40

Part No LGW2D122MELB40
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 1200UF 20% 200V SNAP / 1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2D122MELB40 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Bulk
Product Status Active
Capacitance 1200 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 4.2 A @ 120 Hz
Ripple Current @ High Frequency 6.3 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.575" (40.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360786-LGW2D122MELB40
Ultra Librarian 3D Model Ultra Librarian LGW2D122MELB40 CAD Model

Description

The LGW2D122MELB40 is an aluminum electrolytic capacitor from Nichicon.

  • Series: LGW
  • Package: Radial, Can - Snap-In
  • Capacitance: 1200µF
  • Voltage Rating: 200V
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Lifetime: 3000 hours @ 105°C
  • Impedance: Low
  • Application: General Purpose
