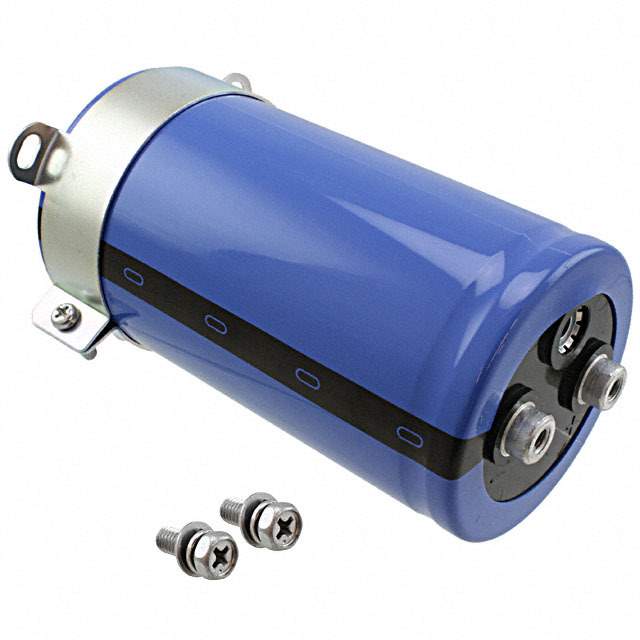

Same model may have multiple batches, images only for reference.

LNR1E224MSE

Name: LNR1E224MSE
Brand: Nichicon
SKU: 1349864
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	LNR1E224MSE
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220000UF 20% 25V SCREW / 220000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Datasheet	LNR1E224MSE Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LNR
Package	Bulk
Capacitance	220000 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	18.9 A @ 120 Hz
Ripple Current @ High Frequency	21.735 A @ 10 kHz
Lead Spacing	1.126" (28.60mm)
Size / Dimension	2.500" Dia (63.50mm)
Height - Seated (Max)	4.843" (123.00mm)
Mounting Type	Chassis Mount
Package / Case	Radial, Can - Screw Terminals
Standard Package	5
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0085
Win Source Part Number	1349864-LNR1E224MSE
Ultra Librarian 3D Model	Ultra Librarian LNR1E224MSE CAD Model

Alternative Products

Description

This aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications. It is part of the LNR series and has a capacitance of 220000 µF with a voltage rating of 25 V. LNR Series manufactured by Nichicon.

Capacitance: 220000 µF
Voltage Rating: 25 V
Tolerance: ±20%
Polarization: Polarized
Mounting Type: Chassis Mount
Package: Radial Can with Screw Terminals
Package Size: 2.500" Dia (63.50mm)
Height Seated (Max): 4.843" (123.00mm)
Lifetime: 5000 Hrs @ 85℃
Temperature Range: -40℃ to 85℃
Ripple Current @ Low Frequency: 18.9 A @ 120 Hz
Ripple Current @ High Frequency: 21.735 A @ 10 kHz
