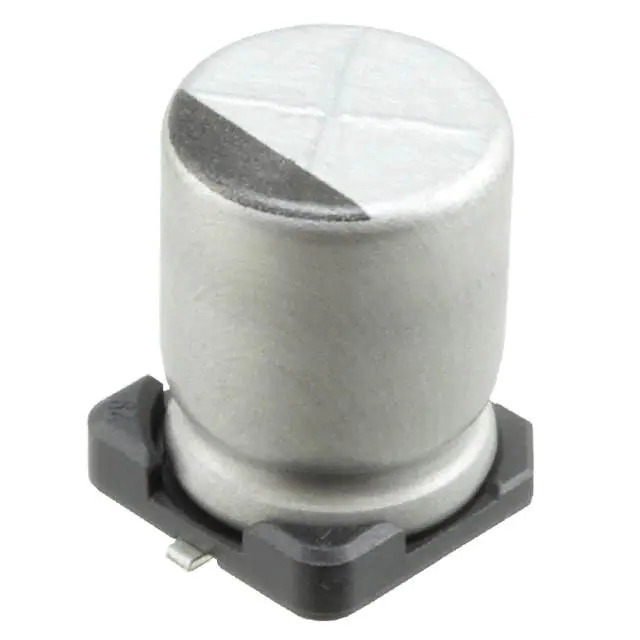

Same model may have multiple batches, images only for reference.
UCD1E221MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1E221MNL1GS

Part No UCD1E221MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 25V SMD / 220 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UCD1E221MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360143-UCD1E221MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1E221MNL1GS CAD Model

Description

The UCD1E221MNL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 220 μF
  • Voltage Rating: 25 V
  • Temperature Range: -55°C to 105°C
  • Application: Automotive
  • Ripple Current: 300 mA @ low frequency (120 Hz) and 600 mA @ high frequency (100 kHz)
  • Series: UCD series capacitors are designed for AEC-Q200 ratings
  • Size: 0.315" diameter and a height of 0.413"
  • Lifetime: 5000 hours @ 105°C
  • Packaging: Tape and reel
  • Type: Polarized
  • Tolerance: ±20%
  • ESR: Low equivalent series resistance (ESR) of 160 mOhms
