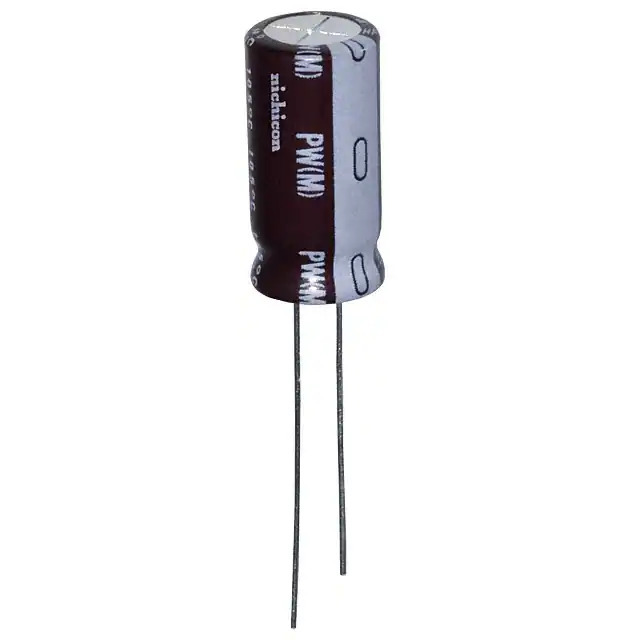

Same model may have multiple batches, images only for reference.
UPW1J221MPD Nichicon
Same model may have multiple batches, images only for reference.

UPW1J221MPD

Part No UPW1J221MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 63V RADIAL / 220 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Datasheet
UPW1J221MPD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 575.25 mA @ 120 Hz
Ripple Current @ High Frequency 885 mA @ 100 kHz
Impedance 147 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.787" (20.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357714-UPW1J221MPD
Ultra Librarian 3D Model Ultra Librarian UPW1J221MPD CAD Model

Description

The Nichicon UPW series is a range of aluminum electrolytic capacitors.

  • Part: UPW1J221MPD
  • Type: radial, can
  • Capacitance: 220µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Application: general-purpose
  • Ripple Current (Low Frequency): 575.25mA @ 120Hz
  • Ripple Current (High Frequency): 885mA @ 100kHz
  • Height: 0.787" (20.00mm)
  • Diameter: 0.394" (10.00mm)
  • Mounting: through-hole
  • Lifetime: 5000 hours @ 105°C
