Same model may have multiple batches, images only for reference.

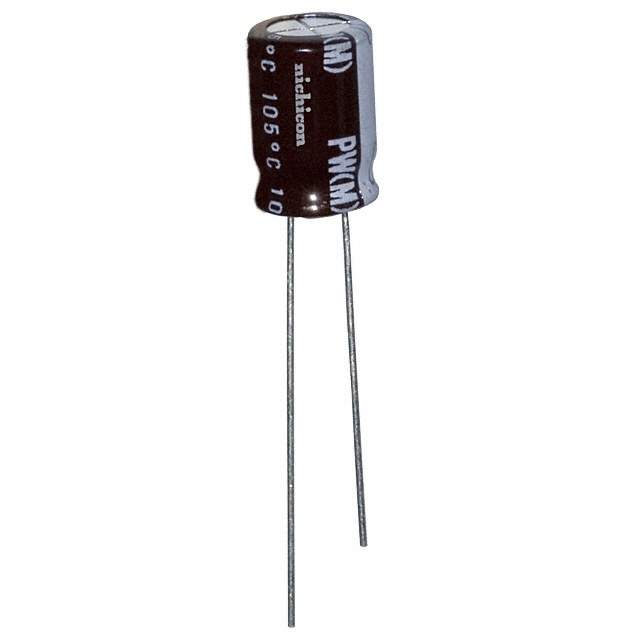

UPW1V101MPD Real Image
Same model may have multiple batches, images only for reference.

UPW1V101MPD

Part No UPW1V101MPD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 35V RADIAL  /  100 µF 35 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UPW
Package Bulk
Product Status Not For New Designs
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 360.75 mA @ 120 Hz
Impedance 117 mOhms
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-1861
Standard Package 3,000
Win Source Part Number 1162191-UPW1V101MPD
Ultra Librarian 3D Model Ultra Librarian UPW1V101MPD CAD Model

Description

The Nichicon UPW series aluminum electrolytic capacitor is a high-quality component designed for general purpose applications. Nichicon

  • Capacitance: 100 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Impedance: 117 mOhms
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 3000 Hrs @ 105°C
  • Polarization: Polarized
  • Package/Case: Radial, can type
  • Diameter: 0.315" (8.00mm)
  • Height: 0.453" (11.50mm)
  • Mounting Type: Through-hole
  • Lead Spacing: 0.138" (3.50mm)
  • Part Number: 1162191-UPW1V101MPD
