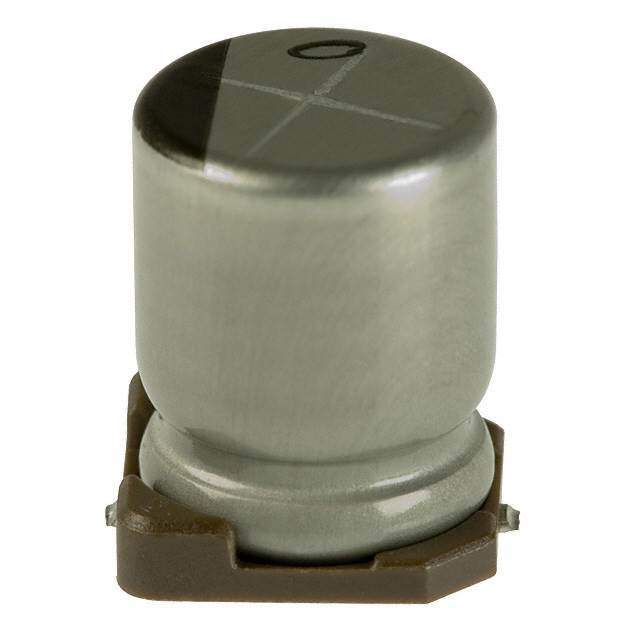

Same model may have multiple batches, images only for reference.

UUD1V221MNL1GS

Name: UUD1V221MNL1GS
Brand: Nichicon
SKU: 696070
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UUD1V221MNL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	ALUMINUM ELECTROLYTIC CAPACITORS \| CAP ALUM 220UF 20% 35V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Reel
Capacitance	220μF
Tolerance	±20%
Voltage - Rated	35V
Lifetime at Temp.	5000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current at Low Frequency	225mA at 120Hz
Ripple Current at High Frequency	450mA at 100kHz
Impedance	170 mOhms
Parts Dimension	0.315" Dia (8.00mm)
Height - Seated (Maximum)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1278758-UUD1V221MNL1GS
Manufacturer Homepage	www.nichicon-us.com
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian UUD1V221MNL1GS CAD Model

Alternative Products

Description

The UUD1V221MNL1GS is a radial, can - SMD capacitor from Nichicon.

Capacitance: 220μF
Voltage Rating: 35V
Polarization: Polarized
Tolerance: ±20%
Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
Supply and Demand Status: Balanced
Lifetime @ Temp.: 5000 Hrs @ 105°C
Ripple Current @ Low Frequency: 225mA @ 120Hz
Ripple Current @ High Frequency: 450mA @ 100kHz
