CFS-0801MA
Same model may have multiple batches, images only for reference.

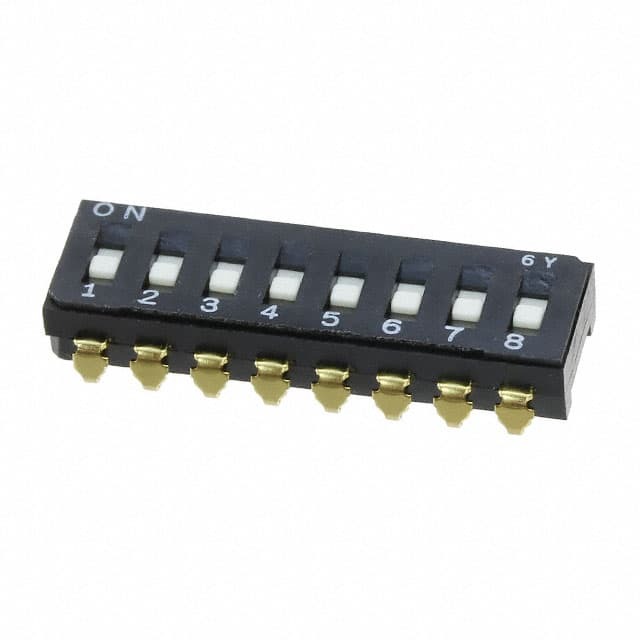

CFS-0801MA

Part No CFS-0801MA
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP SPST 100MA 6V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 100mA 6VDC
Datasheet
CFS-0801MA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tube
Product Status Active
Circuit SPST
Number of Positions 8
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.154" (3.90mm)
Mounting Type Surface Mount
Termination Style J Lead
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.858" (21.80mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0801
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 866342-CFS-0801MA
Ultra Librarian 3D Model Ultra Librarian CFS-0801MA CAD Model

Description

The 866342-CFS-0801MA is an 8-position DIP switch from the CFS series manufactured by Nidec Copal Electronics.

  • Manufacturer: Nidec Copal Electronics
  • Product: 866342-CFS-0801MA
  • Type: 8-Position DIP Switch
  • Series: CFS
  • Actuator Type: Slide
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 6V DC
  • Current Rating: 100mA
  • Mounting: Surface Mount
  • Temperature Range: -40°C to 85°C
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Package: Tube
  • Quantity per Tube: 20 pcs
  • Status: Active
  • Compliance: ECCN Regulations
