NJM2509V-TE1 NJR Corporation/NJRC
Same model may have multiple batches, images only for reference.

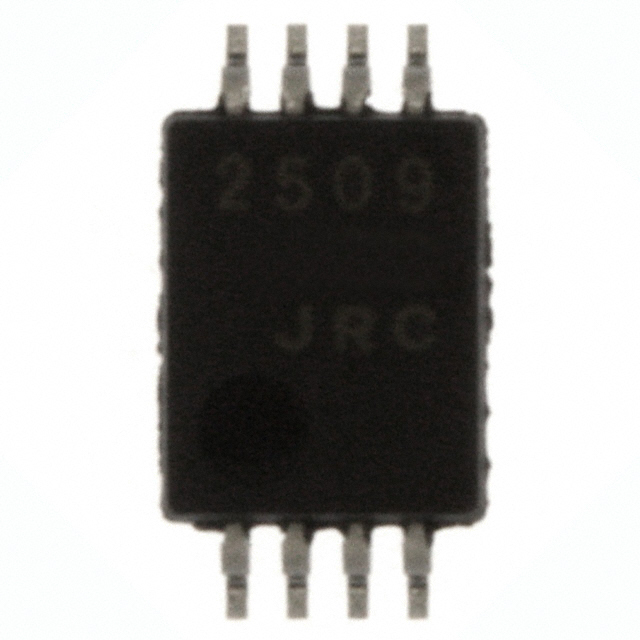

NJM2509V-TE1

Part No NJM2509V-TE1
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Linear - Video Processing
Description IC VIDEO SGNL SUPERIMPOSER 8SSOP / Video Superimposer IC 8-SSOP Package
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Video Processing
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Obsolete
Function Superimposer
Applications Consumer Video
Mounting Type Surface Mount
Package / Case 8-LSSOP (0.173", 4.40mm Width)
Supplier Device Package 8-SSOP
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 254440-NJM2509V-TE1
Ultra Librarian 3D Model Ultra Librarian NJM2509V-TE1 CAD Model

Description

The NJM2509V-TE1 is an integrated circuit (IC) from Nisshinbo Micro Devices Inc.

  • Category: Linear video processing ICs
  • Function: Superimposer
  • Mounting: Surface mountable
  • Package: 8-LSSOP
  • Width: 4.40mm
  • Standard Package: 2,000 pieces
  • Status: Obsolete
  • Application: Superimposing video signals in consumer video applications
  • Features: Reliable performance and compatibility with different devices, durability, efficiency, and ease of use
