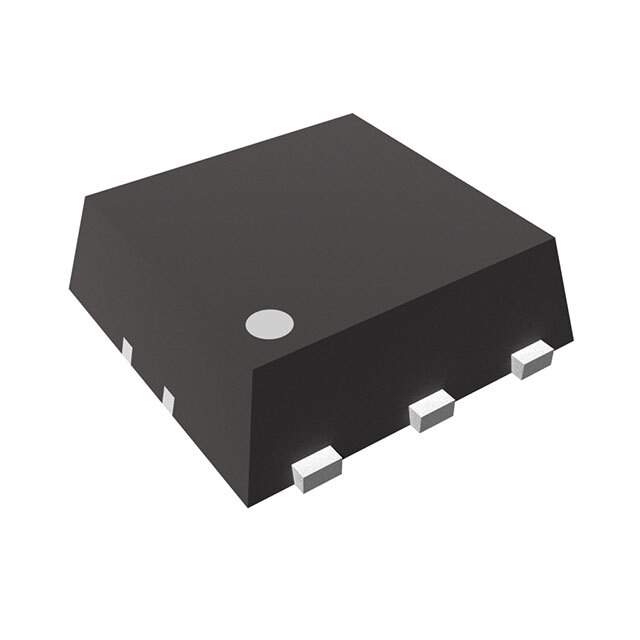

R1173D001D-TR-FE Real Image
Same model may have multiple batches, images only for reference.

R1173D001D-TR-FE

Part No R1173D001D-TR-FE
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 1A 6HSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series R1173x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 1
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 1V
Voltage - Output (Max) 6V
Current - Output 1A
Current - Quiescent (Iq) 100 µA
PSRR 70dB (1kHz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package 6-HSON (2.9x2.8)
Base Product Number R1173
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 287416-R1173D001D-TR-FE
Ultra Librarian 3D Model Ultra Librarian R1173D001D-TR-FE CAD Model

Description

The R1173x series from Nisshinbo Micro Devices Inc. includes the R1173D001D-TR-FE, a linear voltage regulator suitable for power management applications.

  • Product: Voltage Regulators
  • Output Type: Adjustable
  • Maximum Output Voltage: 6 V
  • Minimum Fixed Output Voltage: 1 V
  • Current Output: 1 A
  • Enable: Enabled
  • Maximum Input Voltage: 6 V
  • Package / Case: 6-SMD, Flat Lead Exposed Pad
  • Operating Temperature Range: -40 C to + 85 C
  • Over Current Protection: Yes
  • Over Temperature Protection: Yes
  • Quiescent Current: 100 uA
  • PSRR: 70 dB @ 1kHz
  • Voltage Dropout: Not Specified
