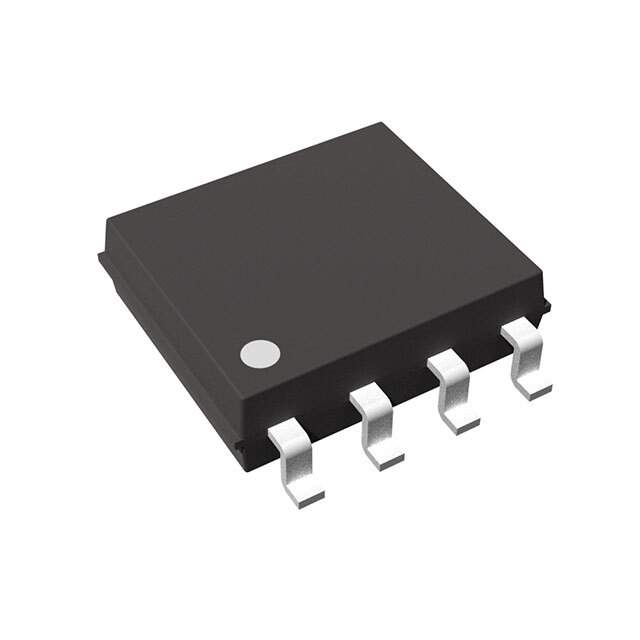

R1242S001A-E2-FE

Name: R1242S001A-E2-FE
Brand: Nisshinbo Micro Devices Inc.
SKU: 1087073
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	R1242S001A-E2-FE
Manufacturer	Nisshinbo Micro Devices Inc.
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	3A 30V INPUT PWM STEP-DOWN DCDC / Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Voltage Regulators - DC DC Switching Regulators
Mfr	Nisshinbo Micro Devices Inc.
Series	R1242S
Package	Tape & Reel (TR)
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	5V
Voltage - Input (Max)	30V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	15V
Current - Output	3A
Frequency - Switching	330kHz ~ 1MHz
Synchronous Rectifier	Yes
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	8-HSOP-E
Base Product Number	R1242
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	1,000
Win Source Part Number	1087073-R1242S001A-E2-FE
Ultra Librarian 3D Model	Ultra Librarian R1242S001A-E2-FE CAD Model

Alternative Products

Description

The R1242S001A-E2-FE is a step-down DC DC switching regulator with an adjustable output type and a current output of 3A.

Output Type: adjustable output type
Current Output: 3A
Frequency Switching: 330kHz to 1MHz
Output Configuration: positive output configuration
Voltage Output: 0.8V to 15V
Voltage Input: 5V to 30V
Rectifier: synchronous rectifier
Package Type: 8-SOIC (0.173", 4.40mm Width) Exposed Pad
Manufacturer: Nisshinbo Micro Devices Inc.
Alternative Parts: no alternative parts
MSL Level: 1 (Unlimited)
HTSUS: 8542.39.0001
