Same model may have multiple batches, images only for reference.

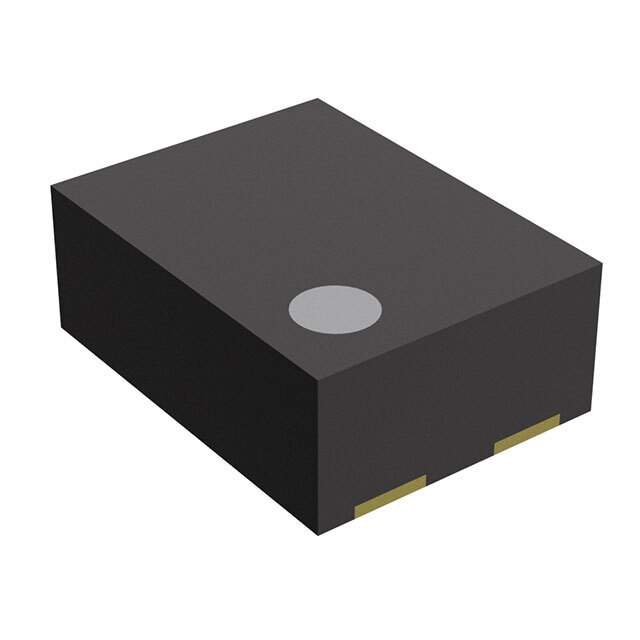

RP101K331D-TR Real Image
Same model may have multiple batches, images only for reference.

RP101K331D-TR

Part No RP101K331D-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 3.3V 300MA DFN1612-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP101x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 3.3V
Voltage Dropout (Max) 0.23V @ 150mA
Current - Output 300mA
Current - Quiescent (Iq) 25 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 4-UDFN Exposed Pad
Supplier Device Package DFN(PL)1612-4
Base Product Number RP101
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298072-RP101K331D-TR
Ultra Librarian 3D Model Ultra Librarian RP101K331D-TR CAD Model

Description

The RP101x series is a family of linear voltage regulators designed for power management applications by Nisshinbo Micro Devices Inc.

  • Model: RP101K331D-TR
  • Output Type: fixed
  • Maximum Input Voltage: 5.25V
  • Current Output: 300mA
  • Minimum/Fixed Output Voltage: 3.3V
  • Mounting Type: surface mountable
  • Package: 4-UDFN exposed pad
  • Enable Control: yes
  • Protection: against over current
  • Operating Temperature Range: -40°C to 85°C
  • Quiescent Current: 25μA
  • Series: RP101 series
  • Voltage Dropout: 0.23V @ maximum output current
