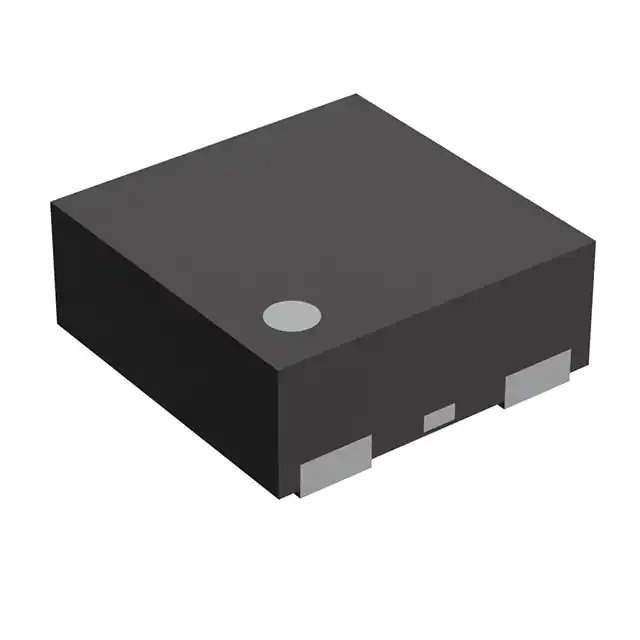

RP110L121D-TR Real Image
Same model may have multiple batches, images only for reference.

RP110L121D-TR

Part No RP110L121D-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LIN 1.2V 150MA DFN1010-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP110x
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.2V
Voltage Dropout (Max) 1V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 2 µA
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 4-XDFN Exposed Pad
Supplier Device Package DFN1010-4
Base Product Number RP110
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298232-RP110L121D-TR
Ultra Librarian 3D Model Ultra Librarian RP110L121D-TR CAD Model

Description

The RP110x is a linear voltage regulator from Nisshinbo Micro Devices Inc.

  • Series: RP110
  • Application: Power management
  • Output Type: Fixed
  • Output Voltage: 1.2V (minimum)
  • Input Voltage: Up to 5.25V
  • Current Output: 150mA
  • Feature: Enable control
  • Package: 4-XDFN exposed pad (surface mount)
  • Protection: Over current
  • Quiescent Current: 2 µA
  • Temperature Range: -40°C to 85°C
  • Status: Active
