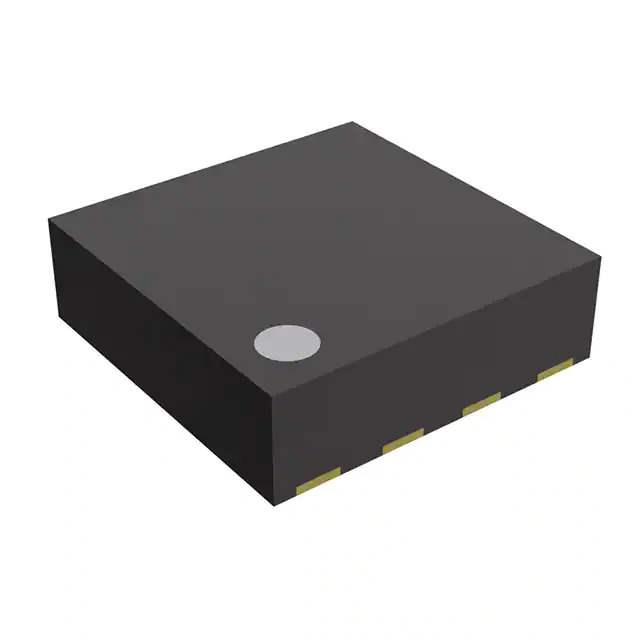

RP150K007A-TR Real Image
Same model may have multiple batches, images only for reference.

RP150K007A-TR

Part No RP150K007A-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR POS ADJ 300MA 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr Nisshinbo Micro Devices Inc.
Series RP150K
Package Tape & Reel
Product Status Active
Output Configuration Positive
Output Type Adjustable
Number of Regulators 2
Voltage - Input (Max) 5.25V
Voltage - Output (Min/Fixed) 1.5V
Voltage - Output (Max) 3.3V
Voltage Dropout (Max) 1V @ 300mA
Current - Output 300mA, 300mA
Current - Quiescent (Iq) 33 µA
PSRR 80dB (1kHz)
Control Features Enable
Protection Features Over Current
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-UFDFN Exposed Pad
Supplier Device Package DFN(PL)2020-8
Base Product Number RP150
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 298390-RP150K007A-TR
Ultra Librarian 3D Model Ultra Librarian RP150K007A-TR CAD Model

Description

The RP150K007A-TR is an integrated circuit (IC) power management voltage regulator designed for linear voltage regulation in electronic devices. Manufactured by Nisshinbo Micro Devices Inc., this voltage regulator is part of the RP150K series and is currently active in the market.

  • Maximum Output Voltage: 3.3V
  • Minimum Output Voltage: 1.5V
  • Current Output: 300mA
  • Number of Regulators: 2
  • Mounting Type: Surface Mount
  • Package / Case: 8-UFDFN Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • Over Current Protection: Yes
