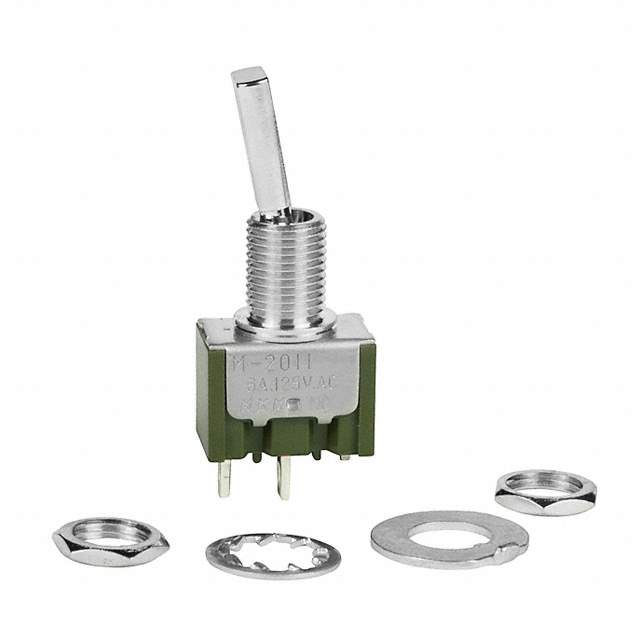

M2011ES1W01

Part No M2011ES1W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 6A 125V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer NKK Switches
Series M
Packaging Bulk
Circuit SPST
Switch Function On-Off
Current Rating 6A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Flatted
Actuator Length 11.40mm
Illumination Non-Illuminated
Mounting Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread 1/4-40
Features Epoxy Sealed Terminals
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Operating Temperature Range -30°C ~ 85°C
Win Source Part Number 761684-M2011ES1W01
Popularity Medium
Supply and Demand Status Balance
Family Name M
Introduction Date April 01, 2006
ECCN EAR99
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian M2011ES1W01 CAD Model

Description

M2011ES1W01 from NKK Switches is a toggle switch used where dependable manual control is needed in compact electronic and electromechanical designs. Parts in this category are commonly selected for panel interfaces, industrial controls, instrumentation, test equipment, communications hardware, and specialty OEM products that require a clear on/off or mode-selection function. NKK Switches is widely recognized for switch quality, making this part relevant for engineers who value brand consistency and long-term usability in control circuits. Because the exact lifecycle status for M2011ES1W01 is information not available, design teams should confirm current production status directly with the manufacturer or authorized channels before locking it into new programs or long-term service builds. RoHS compliance information is also not available from the provided data, so procurement and compliance teams should verify the latest environmental documentation, including RoHS and related declarations, through official datasheets or manufacturer support before release to production.
