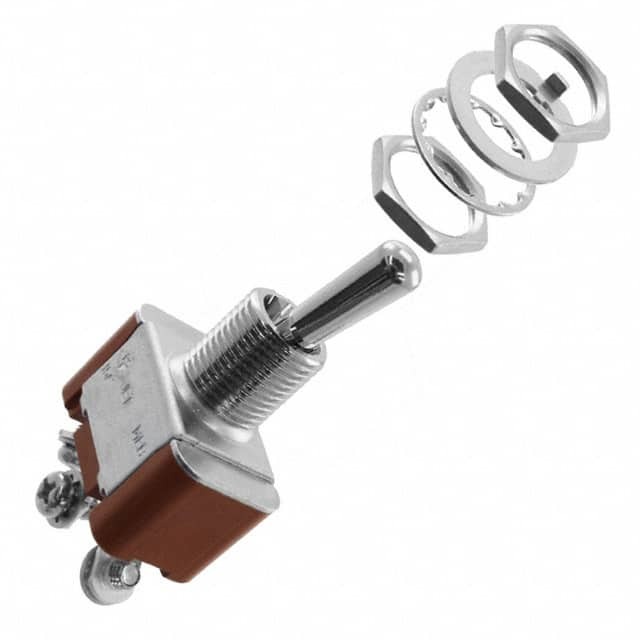

S305T

Part No S305T
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 15A 125V  /  Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr NKK Switches
Series S300
Package Bulk
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 20A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number S305
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1316284-S305T
Ultra Librarian 3D Model Ultra Librarian S305T CAD Model

Description

The S305T is a toggle switch from NKK Switches.

  • Series: S300
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Standard Round
  • Termination Style: Screw Terminal
  • Package: Bulk
  • Voltage Rating: 125 V (AC), 30 V (DC)
  • Current Rating: 15A (AC), 20A (DC)
  • Electrical Life: 25,000 Cycles
  • Temperature Range: -10°C ~ 70°C
  • ECCN: EAR99
  • Panel Cutout Dimension: Circular - 12.50mm Dia
  • Bushing Thread: M12 x 1
  • Mounting: Panel Mount
