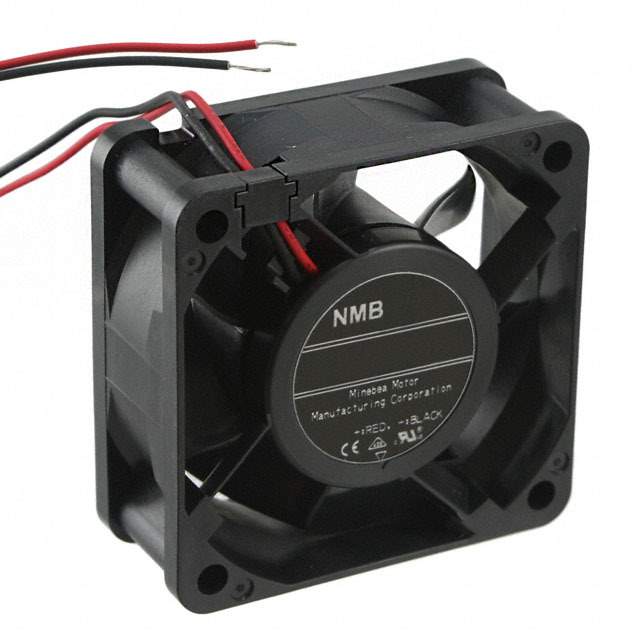

2410SB-04W-B20-B00 Real Image
Same model may have multiple batches, images only for reference.

2410SB-04W-B20-B00

Part No 2410SB-04W-B20-B00
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 14.5 CFM (0.406m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 06025SA
Package Box
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.00mm
Air Flow 14.5 CFM (0.406m³/min)
Static Pressure 0.104 in H2O (26.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 17.0dB(A)
Power (Watts) 720 mW
RPM 3000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, UL, VDE
Weight 0.123 lb (55.79 g)
Current Rating (Amps) 0.060A
Voltage Range 6 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 25°C
Base Product Number 2410SB
Standard Package 120
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1348971-2410SB-04W-B20-B00
Ultra Librarian 3D Model Ultra Librarian 2410SB-04W-B20-B00 CAD Model

Description

The 1348971-2410SB-04W-B20-B00 electronic component from NMB Technologies Corporation is a DC brushless fan with a tubeaxial design.

  • Fan Type: DC Brushless, Tubeaxial
  • Shape: Square
  • Dimensions: 60mm L x 60mm H
  • Voltage Range: 6 ~ 13.8VDC
  • Power Consumption: 720mW
  • Lifetime: 100000 hours @ 25°C
  • Noise Level: 17.0dB(A)
  • Maximum RPM: 3000
  • Material: Plastic
  • Temperature Range: 14 ~ 158°F (-10 ~ 70°C)
