Same model may have multiple batches, images only for reference.

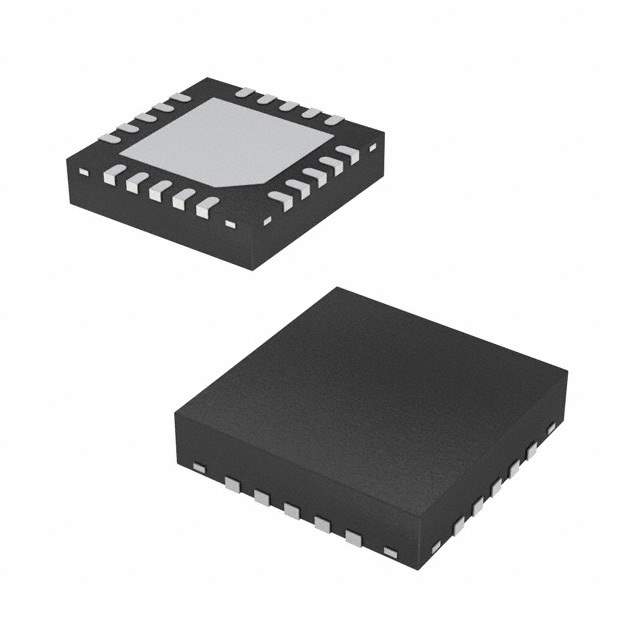

NRF24L01P-T Real Image
Same model may have multiple batches, images only for reference.

NRF24L01P-T

Part No NRF24L01P-T
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 20-VFQFN
Datasheet
NRF24L01P-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Tray
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz
Data Rate (Maximum) 2Mbps
Power - Output 0dBm
Sensitivity -94dBm
Serial Interfaces SPI
Operating Supply Voltage 1.9 V ~ 3.6 V
Current - Receiving 12.6mA ~ 13.5mA
Current - Transmitting 7mA ~ 11.3mA
Operating Temperature Range -40°C ~ 85°C
Package 20-VFQFN Exposed Pad
Manufacturer Nordic Semiconductors
Win Source Part Number 755393-NRF24L01P-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 490
Family Name NRF24L01
Introduction Date June 01, 2007
Country of Origin Philippines, Taiwan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian NRF24L01P-T CAD Model

Description

The Nordic Semiconductor NRF24L01P-T is an RF transceiver IC that operates in the 2.4GHz frequency range.

  • Type: TxRx only
  • Packaging: Tray
  • Power-Output: 0dBm
  • Sensitivity: -94dBm
  • Current-Receiving: 12.6mA ~ 13.5mA
  • Current-Transmitting: 7mA ~ 11.3mA
