The NRF24LE1F16Q32-R is a highly integrated 2.4GHz System-on-Chip (SoC) from Nordic Semiconductor, designed for ultra-low power wireless applications. It combines a Nordic Semiconductor nRF24L01+ 2.4GHz transceiver, an 8051-compatible microcontroller, and 16KB of Flash memory, making it a compact and efficient solution for wireless connectivity.

Applications

• Wireless keyboards and mice: Provides reliable and low-latency wireless connection.
• Remote controls: Enables bidirectional communication and advanced control features.
• Wireless game controllers: Delivers responsive and accurate control for gaming applications.
• Smart home devices: Connects sensors, actuators, and other devices in a home automation network.
• Wireless sensor networks: Facilitates data collection and monitoring in industrial, environmental, and agricultural applications.
• Toys and interactive entertainment: Powers wireless toys and games with low power consumption and long battery life.

Features

• 2.4GHz transceiver: Based on the proven nRF24L01+ transceiver for robust and reliable wireless communication.
• 8051-compatible microcontroller: Provides a flexible and familiar platform for application development.
• 16KB Flash memory: Stores application code and data.
• 1KB SRAM: Provides working memory for the microcontroller.
• Low power consumption: Optimized for long battery life in portable devices.
• Enhanced ShockBurst™: Improves link reliability and reduces power consumption.
• SPI interface: Allows for easy communication with external devices.
• GPIO pins: Provides flexible input and output capabilities.

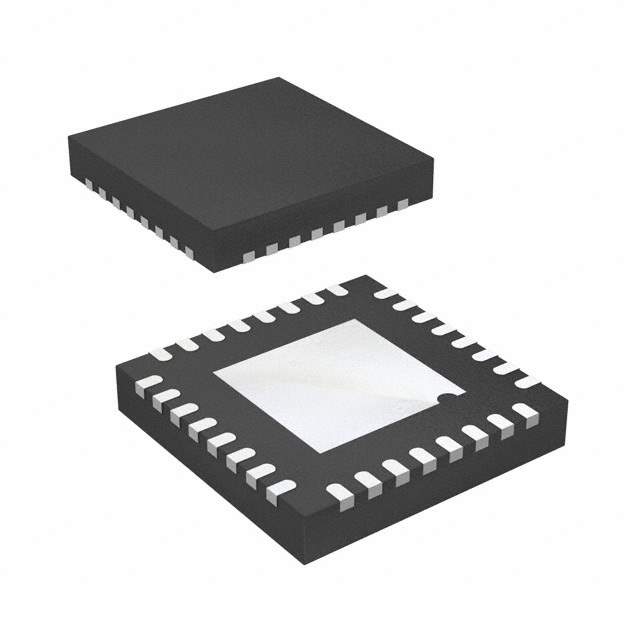

• QFN32 package: Compact package for space-constrained applications.

Benefits

• High integration: Reduces component count and simplifies system design.
• Low power consumption: Extends battery life and reduces maintenance costs.
• Robust wireless communication: Ensures reliable data transfer even in noisy environments.
• Flexible microcontroller platform: Allows for customization and integration of various functionalities.
• Cost-effective solution: Provides excellent performance at a competitive price.

Additional Details

The NRF24LE1F16Q32-R operates in the 2.4GHz ISM band, allowing for worldwide use without licensing requirements. It supports data rates of up to 2Mbps. The Enhanced ShockBurst™ protocol provides features such as auto-acknowledgment, auto-retransmit, and dynamic payload length, which improve link reliability and reduce power consumption. The device also includes a power management unit (PMU) that optimizes power consumption in different operating modes. The operating voltage range is typically from 1.9V to 3.6V. The QFN32 package measures 5x5mm, making it suitable for compact and portable devices.

When designing with the NRF24LE1F16Q32-R, consider factors such as antenna design, power supply filtering, and software optimization to achieve optimal performance and battery life. Refer to the manufacturer's datasheet and application notes for detailed information and design guidelines.
