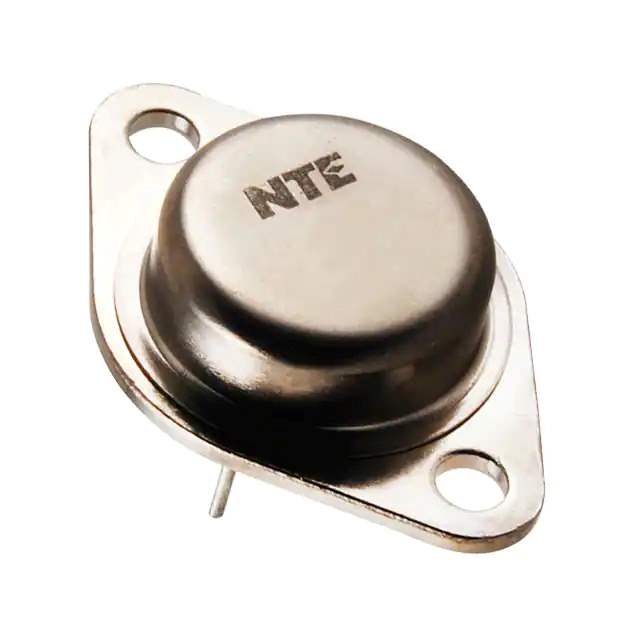

2N5686 Real Image
Same model may have multiple batches, images only for reference.

2N5686

Part No 2N5686
Manufacturer NTE
Catalog Transistors (BJT) - Single
Description TRANS NPN 80V 50A TO204
Datasheet
2N5686 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr NTE
Package Bag
Product Status Active
Transistor Type NPN
Current - Collector (Ic) (Max) 50 A
Voltage - Collector Emitter Breakdown (Max) 80 V
Vce Saturation (Max) @ Ib, Ic 1V @ 2.5A, 25A
Current - Collector Cutoff (Max) 1mA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 25A, 2V
Power - Max 300 W
Frequency - Transition 2MHz
Temperature Range - Operating -65°C ~ 200°C (TJ)
Mounting Type Through Hole
Package / Case TO-204AE
Supplier Device Package TO-204 (TO-3)
Standard Package 1 pcs
ECCN EAR99
HTSUS 8541.29.0095
Win Source Part Number 541317-2N5686
Ultra Librarian 3D Model Ultra Librarian 2N5686 CAD Model

Description

The 541317-2N5686 is a bipolar transistor that belongs to the single bipolar transistor series.

  • Series: Single Bipolar Transistor
  • Application: Discrete Semiconductor Products, Transistor
  • Maximum Power Rating: 300W
  • Maximum Collector-Emitter Breakdown Voltage: 80V
  • Maximum Collector Current: 50A
  • Transistor Type: NPN
  • Vce Saturation: 1V @ 2.5A and 25A
  • DC Current Gain: 15 @ 25A and 2V
  • Package: TO-204AE Through Hole
  • Product Status: Active
  • Manufacturer: NTE
