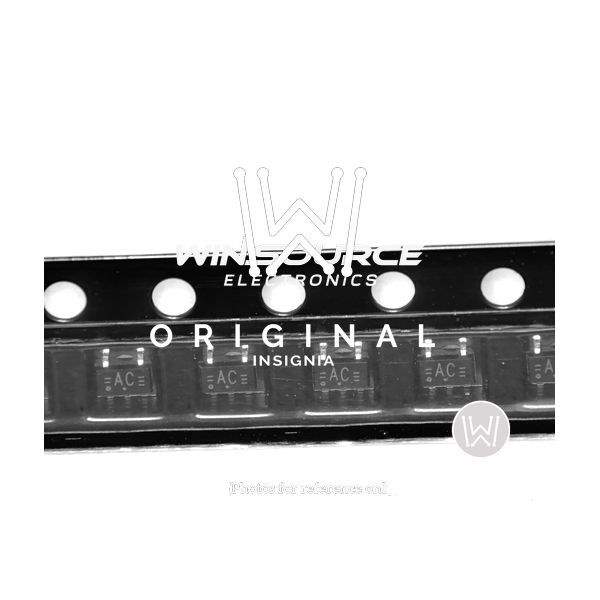

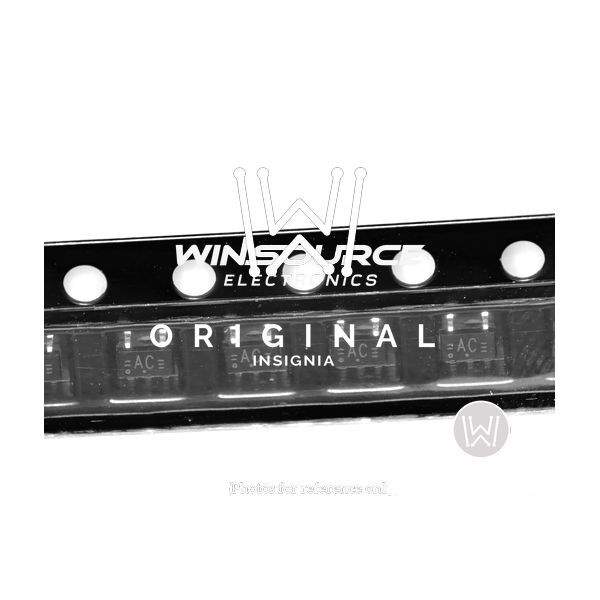

The 74AHC1G04GW is a high-speed CMOS device that serves as a single inverter. Manufactured by NXP Semiconductors, a leader in the electronics industry, this component is part of the 74AHC family, known for its robust performance and compatibility with TTL levels. This particular model is packaged in a compact SOT-353 surface-mount format, making it suitable for high-density mounting and an ideal choice for a wide range of applications.

Key Features

• Logic Type: The 74AHC1G04GW is designed to perform the inverting function, offering precise logic inversion with a single input and output.
• Supply Voltage Range: This inverter operates over a broad supply voltage range of 2.0V to 5.5V, accommodating various levels of logic and making it versatile for different circuit designs.
• High-Speed Operation: With a typical propagation delay (t<sub>pd) of only 3.9ns at a 5V supply voltage, the device ensures rapid signal processing, which is essential for high-speed applications.
• Low Power Consumption: The 74AHC1G04GW is designed for low power consumption, with a typical ICC of only 1µA, making it ideal for power-sensitive applications.
• Output Drive Capability: This inverter can drive up to 8mA at 5V, providing sufficient current for driving LEDs, TTL, or other logic inputs directly.
• Temperature Range: The device is operational over an extended temperature range from -40°C to +125°C, ensuring reliability across various environmental conditions.

Applications

The 74AHC1G04GW is suitable for a variety of applications, including but not limited to:

• Wave shaping and signal processing
• Logic level conversion
• Oscillator circuits
• Control systems

Quality and Reliability

NXP's commitment to quality ensures that the 74AHC1G04GW meets stringent industry standards for performance and reliability. With its robust design and extensive testing, this inverter is a reliable component for any digital or mixed-signal application requiring a high-performance logic inverter.
