Product Overview: 74HCT4053D

The 74HCT4053D is a high-speed Si-gate CMOS device from NXP Semiconductors, renowned for its reliability and versatile functionality. This integrated circuit is designed to be a triple 2-channel analog multiplexer/demultiplexer with a wide range of applications in digital and analog signal switching.

Key Features

• Compatibility: The device is compatible with TTL levels, making it suitable for interfacing with traditional TTL integrated circuits.
• Versatility: It features three independent 2-channel multiplexers/demultiplexers with common select and enable inputs, offering flexible switching options.
• Low Power Consumption: The 74HCT4053D operates with a low-power dissipation, which is ideal for power-sensitive applications.
• Wide Operating Voltage: It can function over a wide operating voltage range from 2.0V to 10.0V, accommodating various system voltages.
• High Noise Immunity: The device boasts a high noise immunity characteristic of CMOS devices, ensuring stable operation in noisy environments.
• Ease of Use: Simple logic-level controls make the device easy to integrate and use in various circuit configurations.

Applications

The 74HCT4053D is suitable for a multitude of applications, including:

• Analog signal routing
• Digital signal routing
• Signal gating
• Function generation
• Communication systems

Package and Quality Assurance

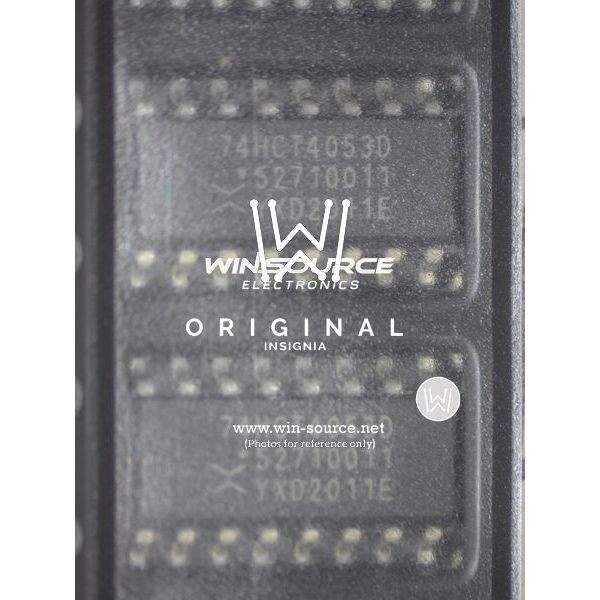

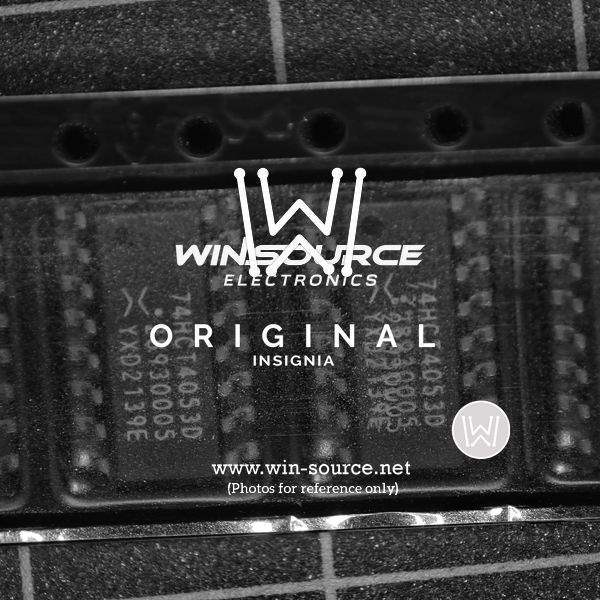

This device is available in a SO16 plastic small outline package, ensuring a compact footprint for space-constrained applications. NXP's commitment to quality is evident in the 74HCT4053D, which is subjected to rigorous testing and quality control measures to ensure high performance and reliability for critical applications.

With its combination of features, the 74HCT4053D from NXP Semiconductors stands out as a versatile choice for designers looking for a reliable multiplexer/demultiplexer solution.
