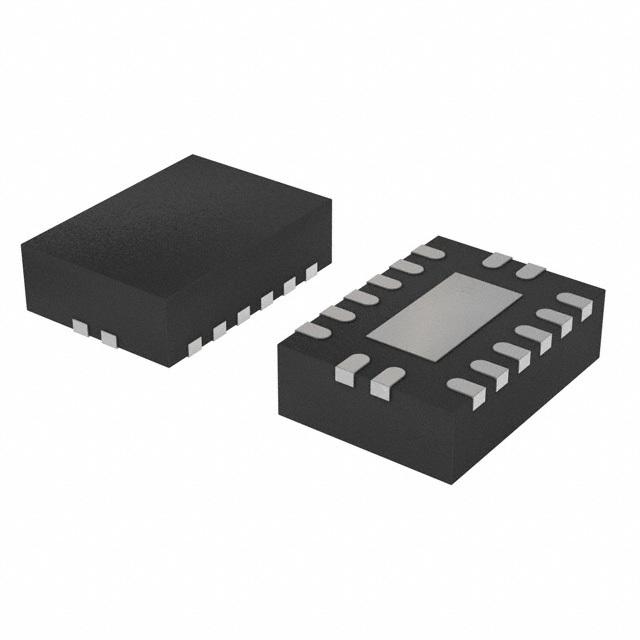

Product Overview: 74LVC157ABQ,115

The 74LVC157ABQ,115 is a high-performance, low-voltage quad 2-input multiplexer produced by NXP Semiconductors. This advanced integrated circuit (IC) is designed to facilitate the selection of one out of two input signals for each output, making it a versatile component in a wide range of digital applications. The device is especially suitable for use in function generators, digital signal processing, and computer systems where high-speed multiplexing is required.

Key Features

• Low Voltage Operation: The 74LVC157ABQ,115 operates at a nominal voltage of 3.3V, which makes it compatible with low-voltage logic systems, while also being tolerant to 5V inputs.
• High-Speed Performance: With its capability to switch at high speeds, this multiplexer is ideal for high-frequency signal processing and other applications requiring fast data throughput.
• Low Power Consumption: The IC features a low power consumption profile, which is critical for battery-operated devices and energy-efficient designs.
• Wide Operating Temperature Range: It can operate over a broad temperature range, making it suitable for industrial and automotive applications that require robust performance under varying environmental conditions.
• Logic Level Translation: The device can translate logic levels, allowing it to interface between different voltage domains within a system.

Technical Specifications

• Logic Type: Quad 2-Input Multiplexer
• Package: DHVQFN16, a compact leadless package that saves space on PCBs.
• Logic Family: LVC, known for low-voltage operation and compatibility with mixed-voltage systems.
• Output Capability: Standard outputs that can drive up to 24mA, providing good signal integrity.
• Supply Voltage Range: 1.2V to 3.6V, accommodating various design requirements.
• Propagation Delay: Fast propagation delay times ensure minimal signal latency.

Applications

The 74LVC157ABQ,115 is designed for multiplexing digital signals in a variety of applications, including:

• Data routing in communication systems
• Signal gating in mixed-signal environments
• Function selection in programmable logic controllers (PLCs)
• Address selection in memory units
• Input/output port expansion

With its combination of low-power operation, high-speed switching, and versatile functionality, the 74LVC157ABQ,115 from NXP Semiconductors is an excellent choice for designers looking to optimize their digital systems for both performance and efficiency.
