Product Overview: 74LVC16374ADG-T by NXP

The 74LVC16374ADG-T is a high-performance, low-voltage 16-bit edge-triggered D-type flip-flop with 3-state outputs, manufactured by NXP Semiconductors. This integrated circuit is designed for use in applications that require the capture and storage of digital data. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

With its advanced 3.3V CMOS technology, the 74LVC16374ADG-T provides a robust and power-efficient solution for modern digital systems. The device operates from a 1.65V to 3.6V supply voltage, making it compatible with low-voltage systems and ensuring minimal power consumption without sacrificing performance.

Key Features

• Logic Family: LVC - Low-voltage CMOS
• Operating Voltage: 1.65V to 3.6V, allowing for use in low-voltage applications.
• Output Capability: Bus driver with 3-state outputs, which can be placed in high-impedance mode to allow for bus sharing.
• Edge-Triggered Flip-Flops: Ensures reliable data capture on the rising edge of the clock signal.

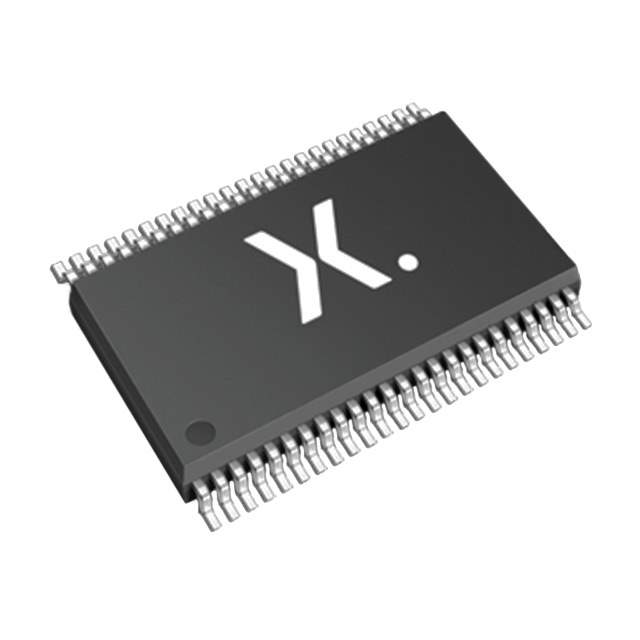

• Pin Configuration: 48-Pin TSSOP (Thin Shrink Small Outline Package), offering a compact footprint for space-constrained applications.
• High-Speed Performance: Propagation delay times are minimized, ensuring fast data transfer and processing.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V, making the device compatible with TTL levels.
• Latch-Up Performance: Exceeds 250 mA per JESD 78, Class II, providing robustness against latch-up.
• ESD Protection: HBM JESD22-A114F exceeds 2000V and MM JESD22-A115-A exceeds 200V, ensuring protection against electrostatic discharge events.

Applications

The 74LVC16374ADG-T is versatile and can be used in a wide range of applications, including:

• Communications infrastructure
• Computers and computer peripherals
• Data storage devices
• Industrial control systems
• Consumer electronics

With its high-speed performance and low-power operation, the 74LVC16374ADG-T from NXP is an ideal choice for designers looking to implement reliable and efficient digital storage and transfer mechanisms in their electronic systems.
