Product Overview: 74LVC1G125GV Single Bus Buffer/Gate with 3-State Output

The 74LVC1G125GV from NXP Semiconductors is a high-performance, single-bit buffer/gate with a 3-state output, which belongs to the 74LVC family of low-voltage CMOS devices. Designed to operate from 1.65V to 5.5V, this makes the 74LVC1G125GV suitable for interfacing with 5V systems in a mixed 3.3V/5V supply environment. This versatility in voltage compatibility ensures that the device can be used in a wide range of applications, from legacy systems to modern low-power devices.

The device features a high-impedance output state controlled by the output enable (OE) input, which makes it ideal for multiplexing and bus management in complex digital systems. When the OE input is low, the device passes the input (A) to the output (Y). When OE is high, the output is in a high-impedance state, effectively disconnecting the output from the bus or circuit.

Key features of the 74LVC1G125GV include:

• 5V tolerant inputs/outputs for interfacing with 5V logic
• Low static power consumption (ICC) and power-down protection on inputs
• Input levels compatible with TTL and CMOS technologies
• High-speed performance with a propagation delay (tpd) of typically 3.7ns at 3.3V
• ESD protection exceeds JESD 22, ensuring robustness for handling and assembly
• Latch-up performance exceeds 250mA per JESD 78, Class II

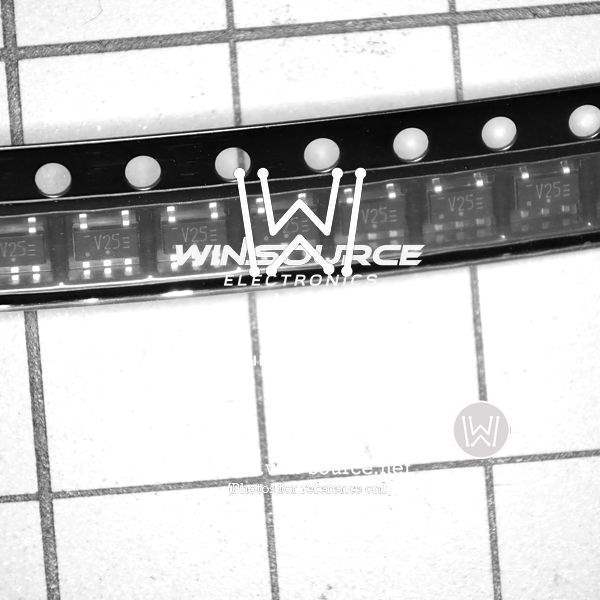

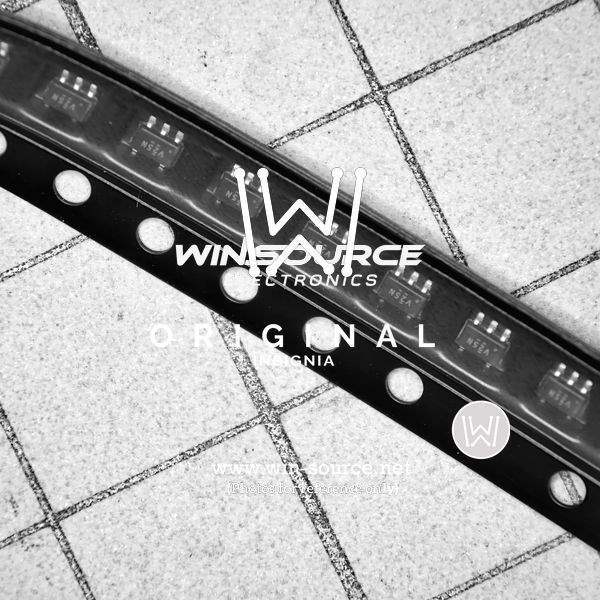

The 74LVC1G125GV is available in a small-outline package, specifically the SOT753 version, which is suitable for space-constrained applications. Its small footprint and low profile make it an excellent choice for portable electronics, where size and power consumption are critical considerations.

Applications for the 74LVC1G125GV range from general-purpose logic buffering to more specific uses such as signal gating, output port configuration for FPGAs, and as a temporary data storage element in digital circuits. Its high-speed and low-power characteristics also make it suitable for battery-operated devices, telecommunications, and computing hardware.

Overall, the NXP 74LVC1G125GV provides designers with a reliable and flexible solution for buffering and interfacing needs in a variety of digital systems, ensuring signal integrity and efficient power usage.
