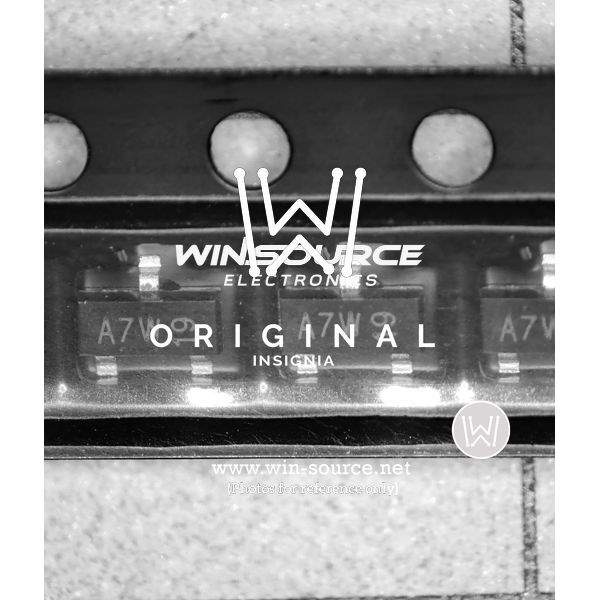

Product Overview: BAV99W,115

The BAV99W,115 is a high-quality switching diode array from NXP Semiconductors, designed to provide users with a reliable and efficient solution for signal switching applications. This product is part of NXP's extensive diode portfolio and is known for its superior performance and compact design.

Key Features

• Package Type: The BAV99W,115 is housed in a small SOT-323 (SC-70) surface-mount package, which is ideal for space-constrained applications.
• Dual Diode Configuration: This device contains two diodes in a series configuration, which allows for the switching of two separate signals or the use of the diodes in a full-bridge rectifier configuration.
• High Switching Speed: With fast switching speeds, the BAV99W,115 is well-suited for high-frequency applications, ensuring minimal signal distortion and efficient operation.
• Low Leakage Current: The low leakage current characteristic of this diode array ensures minimal power loss when the diode is in the off state, contributing to the overall energy efficiency of the circuit.
• Reverse Voltage: It has a continuous reverse voltage rating of 70V, making it suitable for a wide range of applications that require a high breakdown voltage.

Applications

The BAV99W,115 is versatile and can be used in various electronic circuits. Its primary applications include:

• High-speed switching in digital circuits
• Logic level conversion
• Signal multiplexing
• General-purpose switching
• Reverse polarity protection

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The BAV99W,115 is manufactured with NXP's advanced process technologies, ensuring consistent performance and longevity. Whether used in commercial, industrial, or automotive applications, this diode array is built to deliver dependable switching capabilities under a variety of conditions.

Environmental Compliance

The BAV99W,115 is also environmentally friendly, complying with RoHS (Restriction of Hazardous Substances) directives, which limits the use of certain hazardous materials in electronic equipment. This commitment to environmental sustainability makes the BAV99W,115 an ideal choice for eco-conscious designers and manufacturers.
