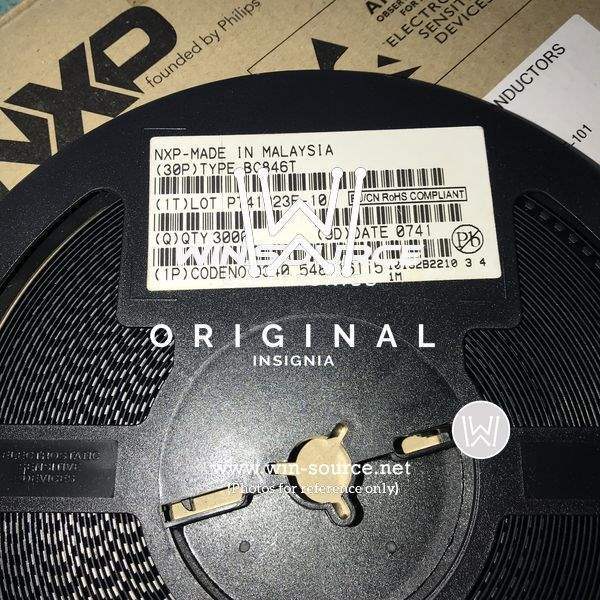

BC846T

Part No BC846T
Manufacturer NXP / Nexperia
Catalog Transistors (BJT) - Single
Description NPN general purpose transistors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer NXP
Win Source Part Number 1152051-BC846T
Manufacturer Homepage www.nxp.com
Family Name BC846T
Introduction Date September 01, 1994
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BC846T CAD Model

Description

The NXP BC846T is a high-quality NPN bipolar junction transistor (BJT) that offers a blend of low power consumption and high efficiency, making it an ideal choice for a wide range of electronic applications. This small-signal transistor is designed for general purpose switching and amplification tasks, and it comes in a compact SOT-416 (SC-75) surface-mounted package that ensures a minimal footprint on printed circuit boards (PCBs).

Key Features

  • Transistor Type: The BC846T is an NPN transistor, which is widely used in electronic circuits for switching and amplification due to its high current gain and ease of integration.
  • Package: The device is enclosed in a SOT-416 (SC-75) package, which is known for its small size and suitability for high-density PCB designs.
  • Current Capacity: It has a collector current of up to 100 mA, making it suitable for low to medium current applications.
  • Voltage Ratings: The transistor can handle a collector-emitter voltage (Vceo) of 65V, providing ample headroom for a variety of uses.
  • Gain Bandwidth Product (fT): With a transition frequency of 100 MHz, the BC846T is capable of working effectively at high-frequency signal processing tasks.
  • Low Noise: It offers low noise performance, which is crucial for applications requiring high signal integrity.

Applications

The NXP BC846T's versatile characteristics make it suitable for an array of applications, including:

  • Audio amplifiers and pre-amplifiers
  • Signal processing
  • Switching circuits
  • Driver stages in hi-fi amplifiers and television circuits
  • Voltage regulation circuits

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the BC846T is no exception. It is manufactured to meet the highest standards of performance and reliability. Whether you are designing a new piece of consumer electronics or looking to improve an existing system, the NXP BC846T offers the performance and dependability that engineers around the world trust.

Please note that all electronic components should be handled with care and implemented according to their datasheet specifications. For complete technical details and usage recommendations, refer to the official NXP BC846T datasheet.
