Introducing the NXP BF1101R,215: A Versatile RF MOSFET

The NXP BF1101R,215 is a high-performance, silicon-based RF MOSFET that is part of NXP Semiconductors' extensive lineup of radio frequency products. Designed to operate efficiently in a wide range of frequencies, this dual-gate MOSFET is an ideal choice for a variety of RF amplification and mixing applications.

Key Features and Benefits

• Dual-Gate MOSFET: The BF1101R,215 features a dual-gate design that allows for enhanced control and flexibility in RF circuitry. This design provides improved linearity and lower noise figures, which are essential for high-quality signal amplification.
• Wide Frequency Range: This MOSFET operates effectively across a broad frequency spectrum, making it suitable for a diverse range of applications, including VHF and UHF bands.
• Low Noise Figure: With its low noise characteristics, the BF1101R,215 ensures clear signal amplification, minimizing the introduction of unwanted noise into the signal path.
• High Gain: The device offers high gain levels, which is critical for amplifying weak signals without significant power loss.

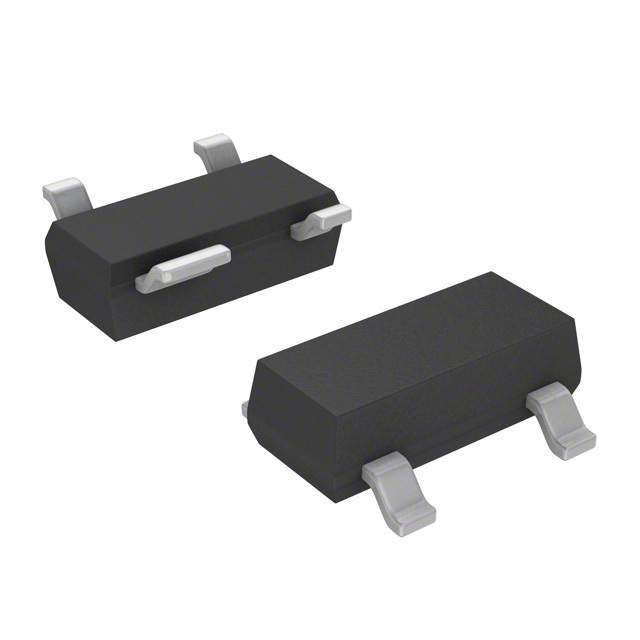

• Surface-Mount Package: The BF1101R,215 comes in a small SOT143B surface-mount package, which allows for compact PCB design and is suitable for automated assembly processes.

Applications

The NXP BF1101R,215 is versatile enough to be used in a variety of RF applications, including:

• RF front-end amplifiers in communication systems
• FM/AM radio and television tuners
• Mixers and oscillators in VHF/UHF applications
• Low-noise blocks (LNBs) in satellite receivers
• RFID readers and other wireless infrastructure

Technical Specifications

Some of the key technical specifications of the BF1101R,215 include:

• Drain-source voltage (Vds): 8 V
• Continuous drain current (Id): 30 mA
• Power gain (Gp): 11 dB at 800 MHz
• Noise figure (NF): 1.2 dB at 800 MHz

The NXP BF1101R,215 RF MOSFET is a robust and reliable choice for designers and engineers looking to enhance their RF applications with a high-quality, high-performance component. With its dual-gate design, low noise figure, and high gain, it stands out as a top-tier option in the field of RF semiconductors.
