Product Overview: NXP BFU630F High-Frequency NPN Bipolar Transistor

The NXP BFU630F is a state-of-the-art, high-frequency, silicon NPN bipolar transistor specifically designed to meet the rigorous demands of today's advanced RF amplification and switching applications. This high-performance transistor is well-suited for a range of uses, from professional RF applications to high-quality consumer products.

Key Features

• High Transition Frequency (fT): The BFU630F boasts an impressive transition frequency of 7 GHz, making it ideal for very high-frequency applications.
• Low Noise Figure: With a noise figure of 1.3 dB at 1 GHz, this transistor provides excellent signal amplification with minimal added noise, ensuring clear and reliable performance.
• High Power Gain: The device is designed to deliver a high power gain, which is critical for efficient signal amplification in RF systems.
• High Maximum Ratings: The transistor can handle a collector-base voltage (VCBO) of 20 V, a collector-emitter voltage (VCEO) of 12 V, and a collector current (IC) of 40 mA, providing a robust operational range for various circuit designs.

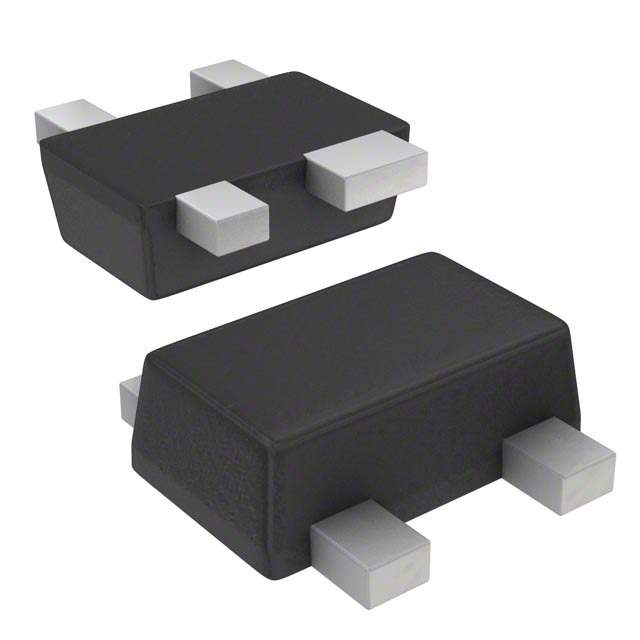

• Surface-Mount Package: The BFU630F comes in a small, surface-mount, 4-pin, plastic SOT343F package, which is not only space-efficient but also conducive to high-density circuit board designs.

Applications

The versatility of the NXP BFU630F makes it suitable for a wide array of applications, including but not limited to:

• Low-noise RF amplifiers
• Oscillators
• Mixers
• RF switch circuits
• IF amplifiers in TV and radio receivers
• Professional communication systems
• Satellite tuners

Conclusion

The NXP BFU630F is a remarkable component that offers a blend of high-frequency performance, low noise, and high power gain. It is a testament to NXP's commitment to providing innovative solutions for the RF industry. Whether for consumer electronics or professional RF systems, the BFU630F is engineered to deliver top-notch performance and reliability.
